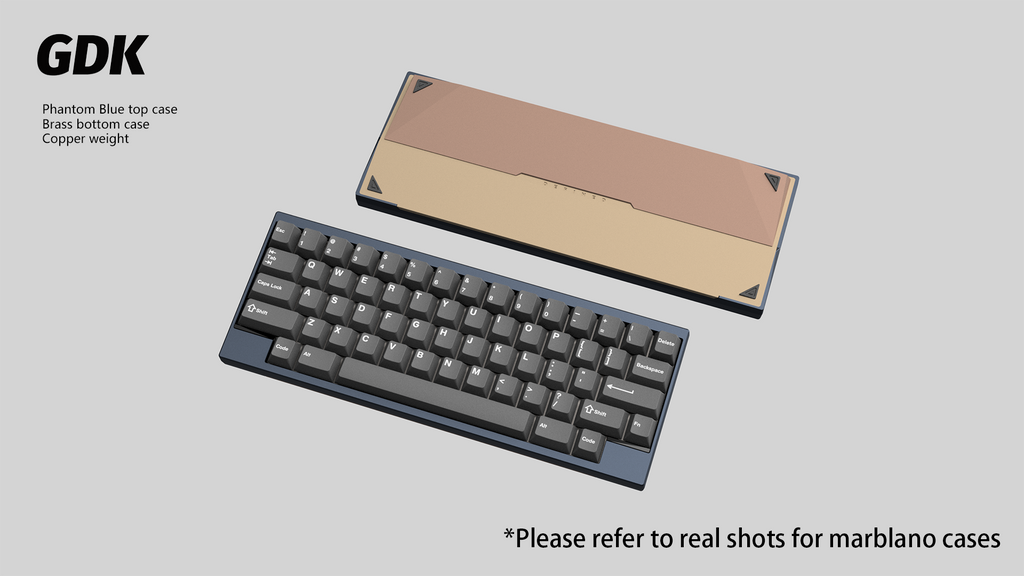

Wuque Studios DK1-60% - Phantom Blue

Wuque Studios DK1-60% - Phantom Blue

$369.90 SGD
$369.90 SGD
Sale Sold out

Group Buy End Date: 2 Sep
View full details

About Wuque Studios DK1-60% - Phantom Blue

👏Surprise GB Benefits
1. First 3 days: Free Titanium Switch Puller×1 + Keycap puller×1
2. Entire period: Free WS Biglucky Switch Sample Pack×1

🎁Lucky Draw (Join Wuque's Discord now!)
⏱️ Time: August 19, 11:00 AM – August 22, 10:00 AM (Beijing Time)

🎉During this period, customers who purchase the DK1-60% Keyboard can participate in the lucky draw by joining the Wuque Discord #giveaway channel.

Number of Winners: 3
🕙 The winners will be announced on August 22 at 11:00 AM (Beijing Time).
Prize: Each of the 3 winners will receive a full refund for their DK1-60% Keyboard order.

💡Please note: Winners must provide a valid order number for the DK1-60% purchased during the event period. If it is found that the order was placed after the draw was won, the prize will be forfeited, and the order will not be refunded.

WK version: No nameplate, includes 2 free metal keycaps

Default top case: Marblano finish

Default PCB: Hot-swap Wired

Silver badge by default: Cyan Glaze, Lilac, Titanium Gray, Ice Blue, Silver

Black badge by default: Black, Wine, Phantom Blue, Dark Gold

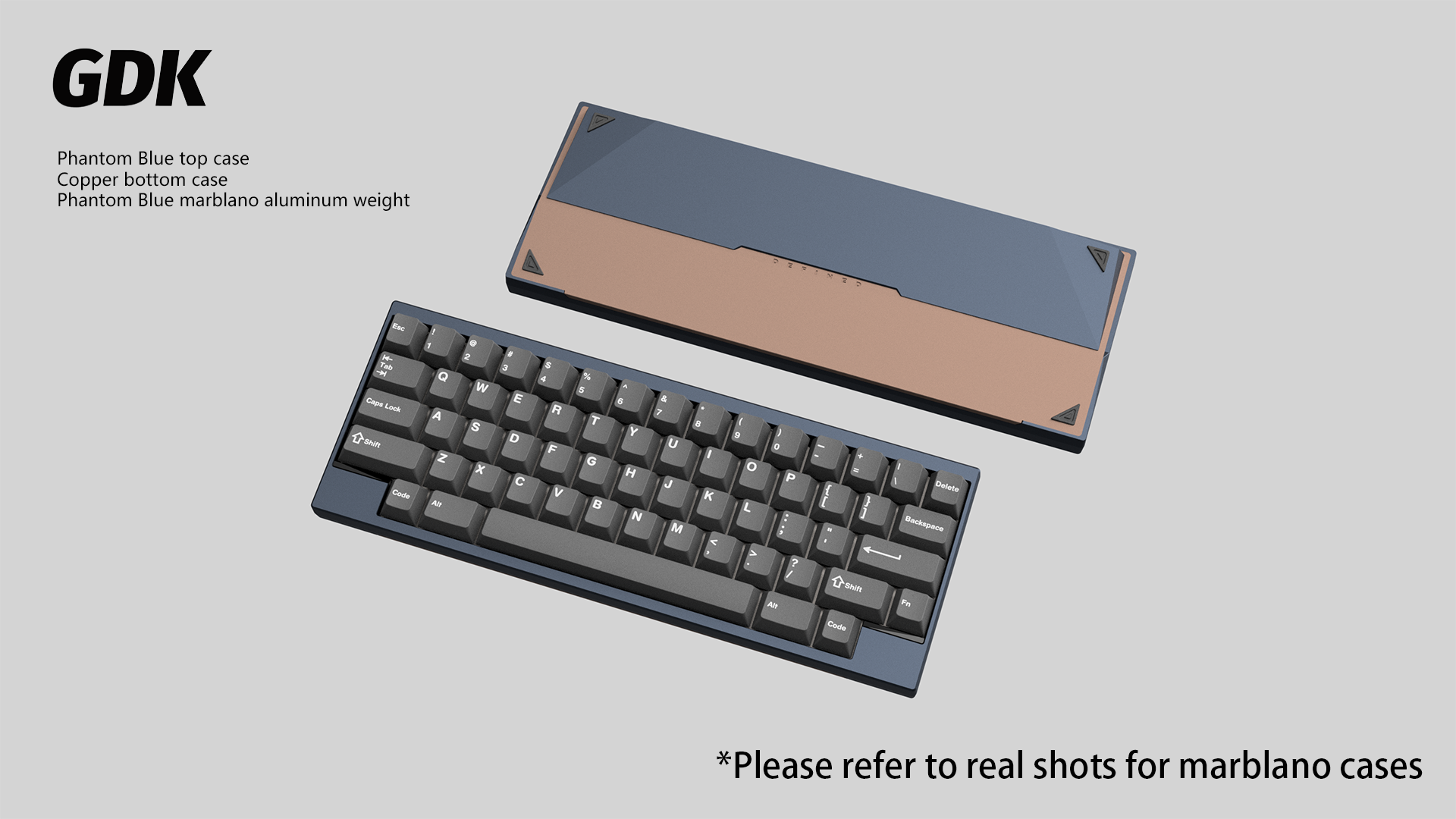

Marblano Weight – The Top case and weight share the same color.

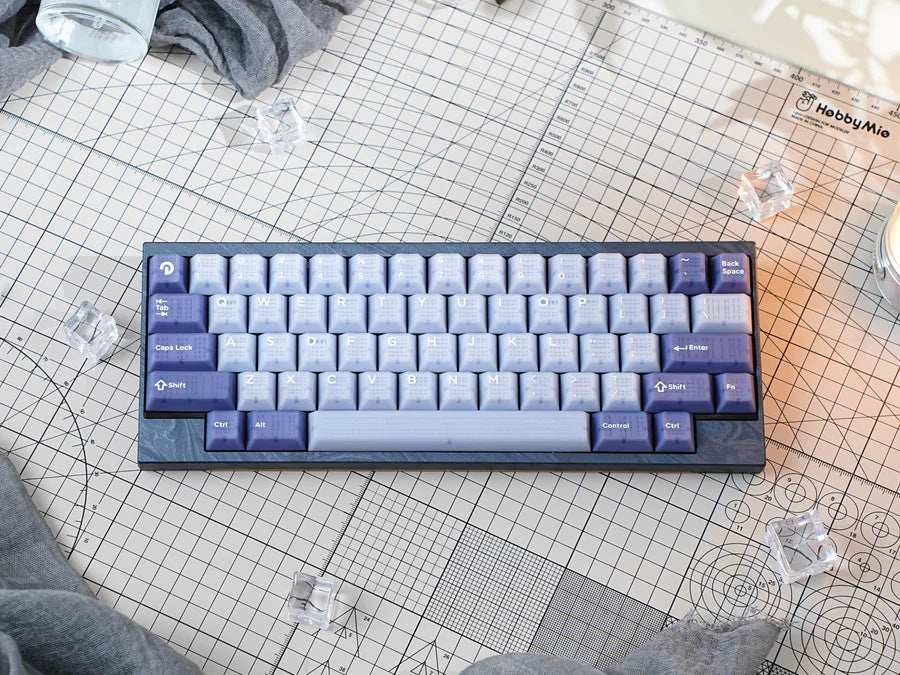

Front

The DK60 retains a slim-bezel design, utilizing an internal screw-fastening solution to further narrow the top and bottom borders.

Badge

A stainless steel accent is added to the "front teeth" (upper case trim), featuring an angled-cut design with a dual-effect PVD finish (mirror + frosted). This elevates the minimalist aesthetic with refined detailing.

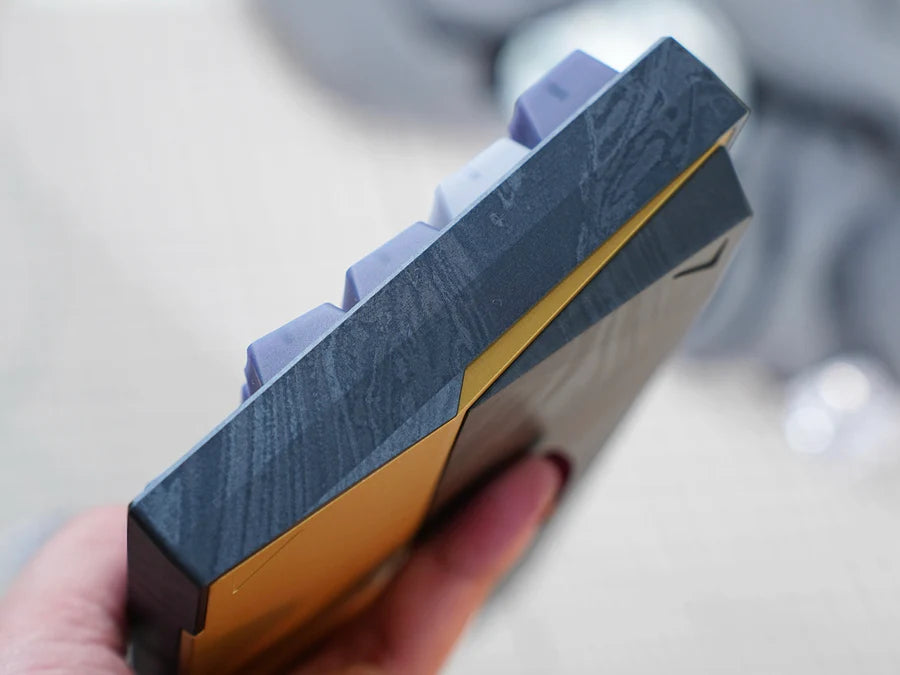

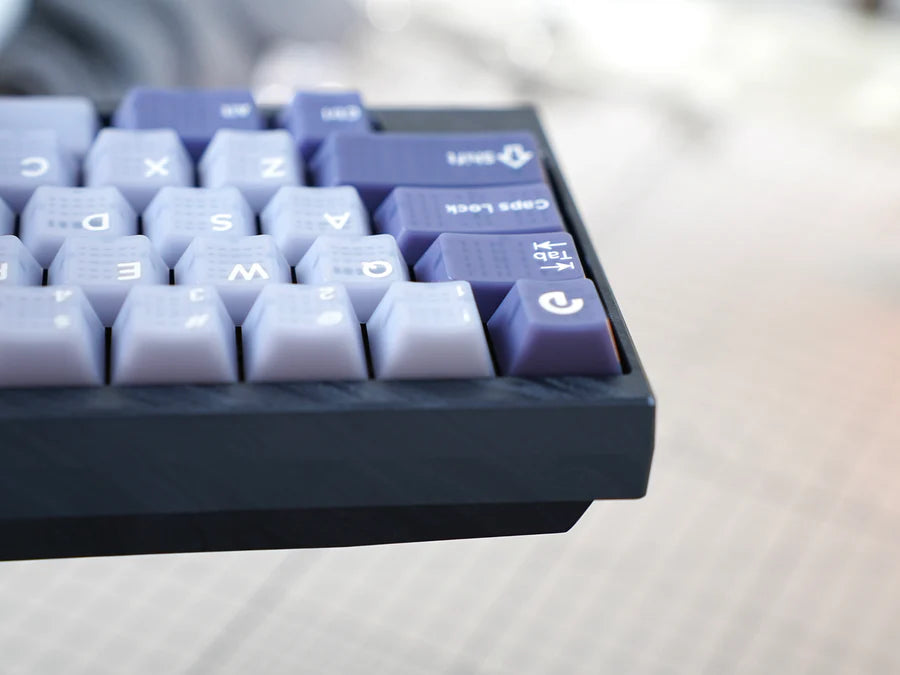

Side Profile

The three-tiered layered design is crafted using wire-cutting techniques. The side and front profiles subtly reveal the base shell’s color, enhancing visual depth.

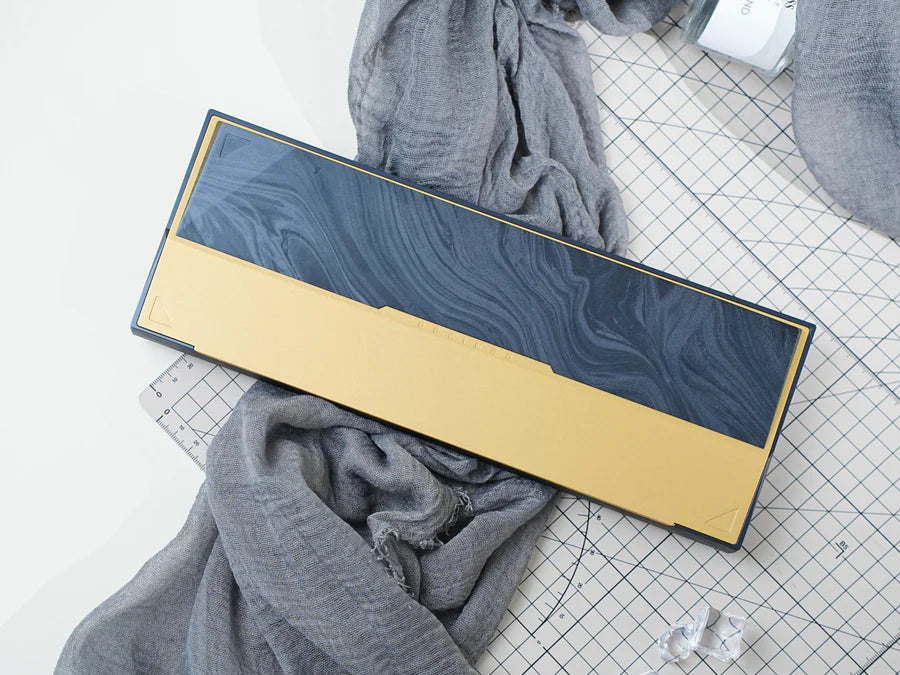

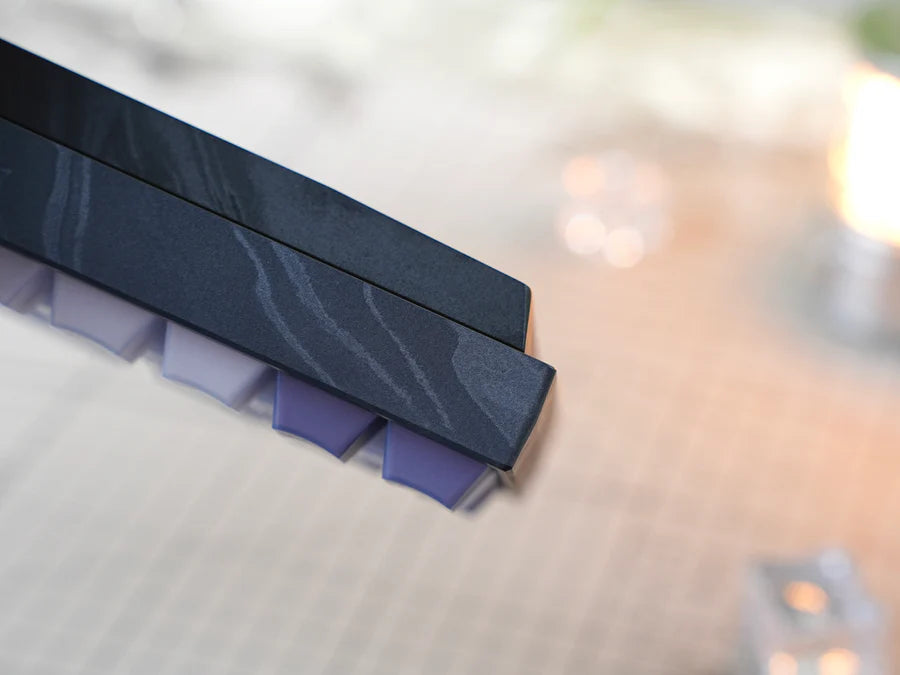

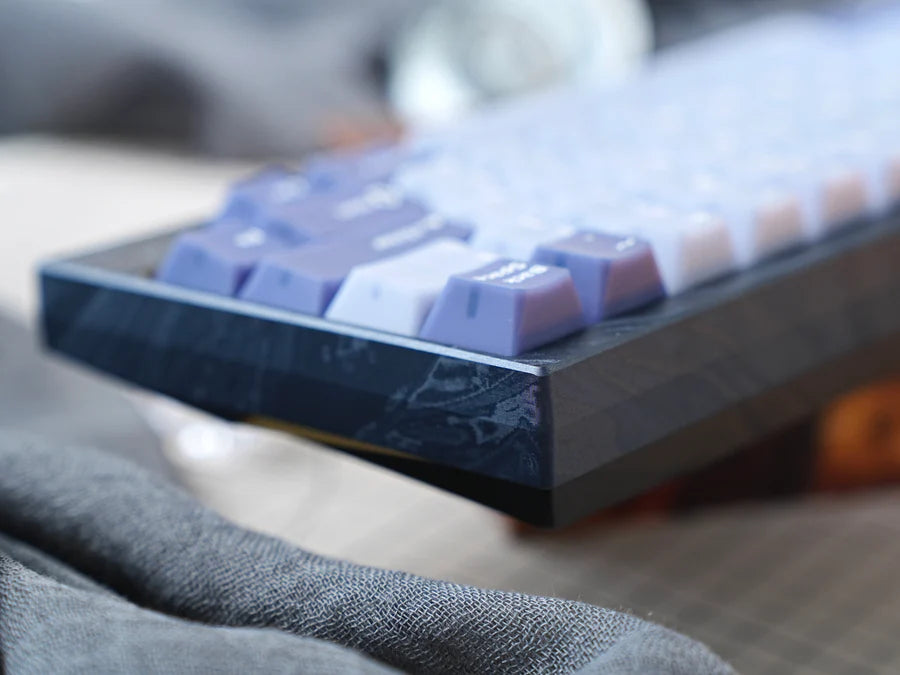

Marblano Effect

For the first time in a keyboard, we’ve employed our"Marblano" finish—as shown in the product images—delivering a strikingly beautiful and unique visual experience. The metal surface vividly reflects dynamic interplays of light and shadow, creating a mesmerizing depth.

Internal Structure

The DK60 features a dual Gasket design (plate-mounted + PCB-mounted), with optimized mounting points for enhanced consistency.

It incorporates the same silicone cushioning system as our 80% series—including plate silicone posts and PCB silicone gaskets—offering players two hardness options (30A soft / 70A firm) for customizable typing feel.

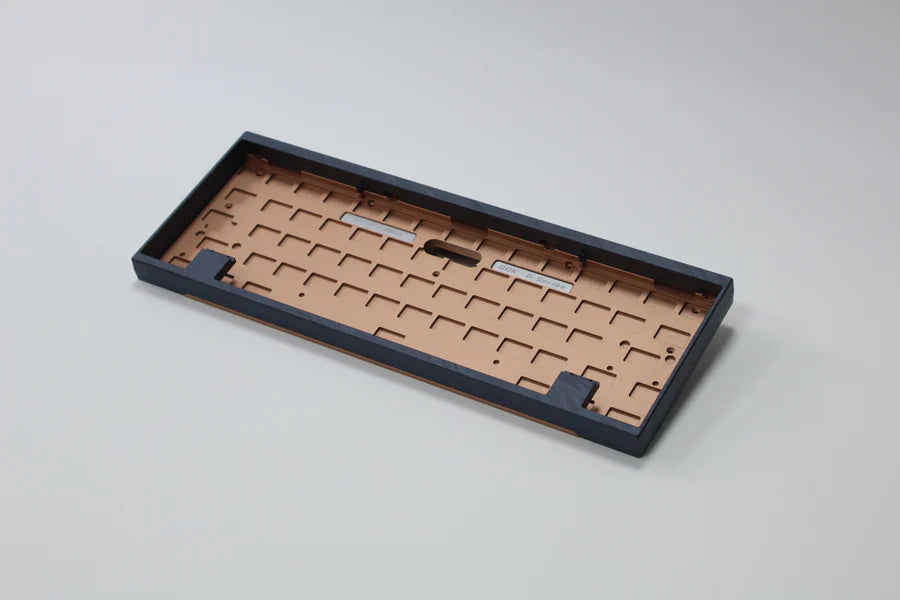

Plate-Mounted Gasket

Layout & Dimensions

Colorways

Exploded View

Product Specifications

Keyboard Layout:
60% (60-key layout)

Dimensions:
292.5 × 110 × 30.5 mm

Front Height:
15.5 mm

Typing Angle:
8°

Case Material:

  • Top Case: Aluminum
  • Bottom Case: Copper or Brass
  • Counterweight: Aluminum or Copper

Finish Treatment:
Anodized / Spraying

Mounting Style:

  • Plate: Silicone positioning particles
  • PCB: Silicone sleeve support

Connection Types:
Tri-mode (USB / Bluetooth / 2.4GHz)

PCB:

  • 1.6mm hot-swappable PCB
  • VIA compatible
  • Supported Layouts: 60%
  • Hotswap Support: Yes

Bluetooth Version:
BLE 5.3

Polling Rates:

  • Bluetooth: 125 Hz
  • 2.4GHz: 1000 Hz
  • Wired: 1000 Hz

Battery Capacity:
2 × 1200mAh

Default Plate Material:
PC / Aluminum/ FR4

RGB Support:
No

Operating System Compatibility:
Windows / macOS / Linux / Android

Weight (Assembled):

  • Aluminum Counterweight: 1.73 kg
  • Copper Counterweight: 2.03 kg
