About WS Jade Linear

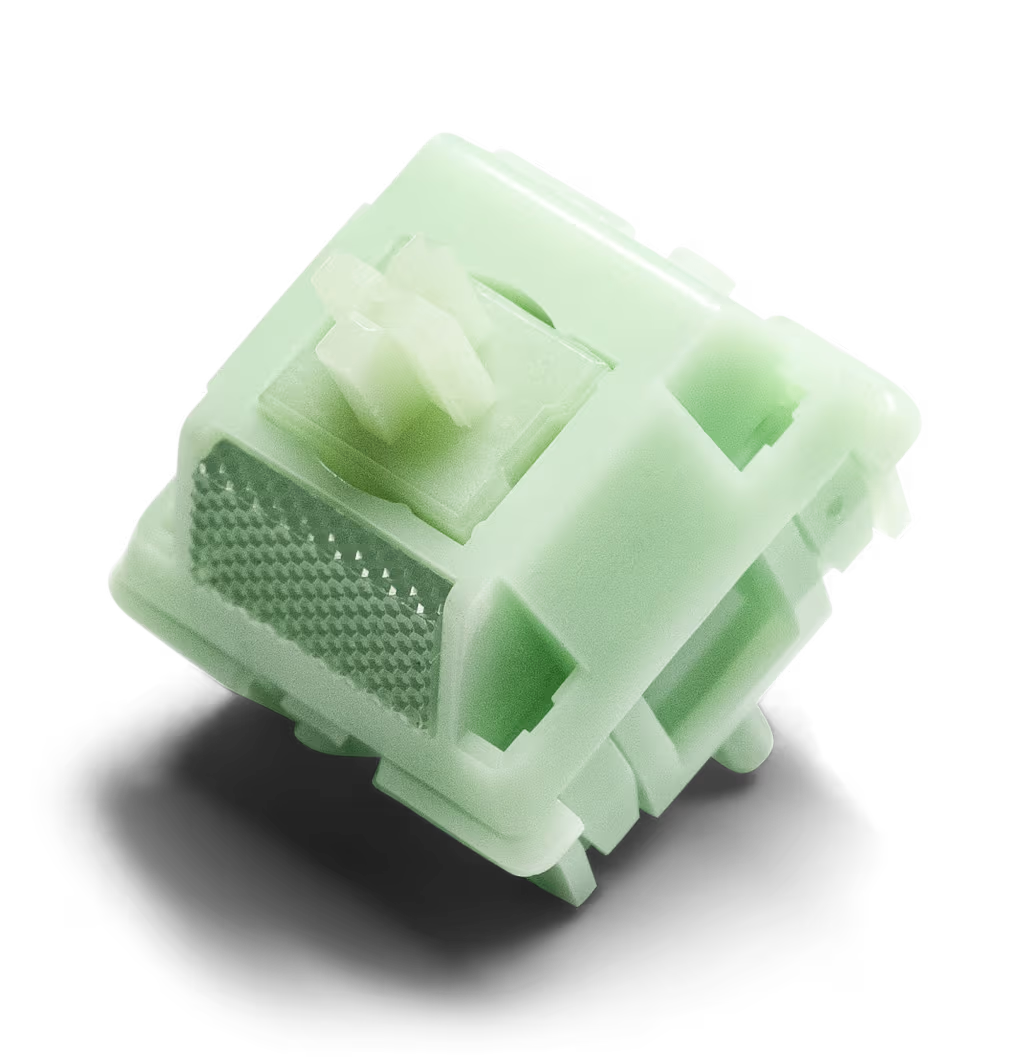

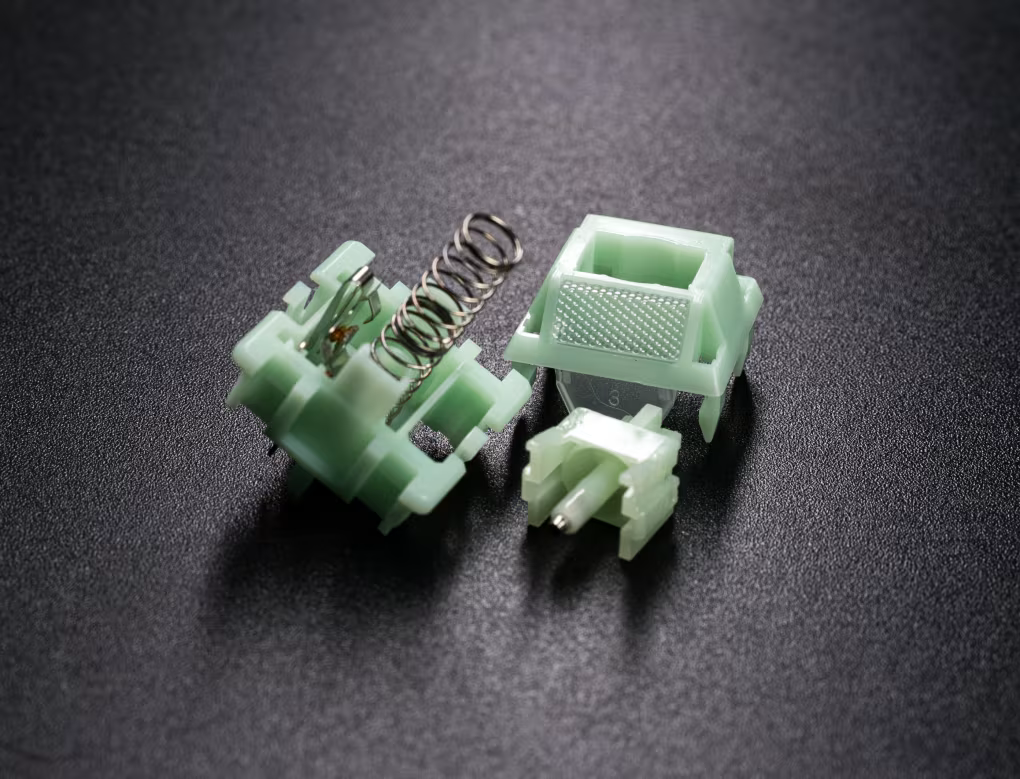

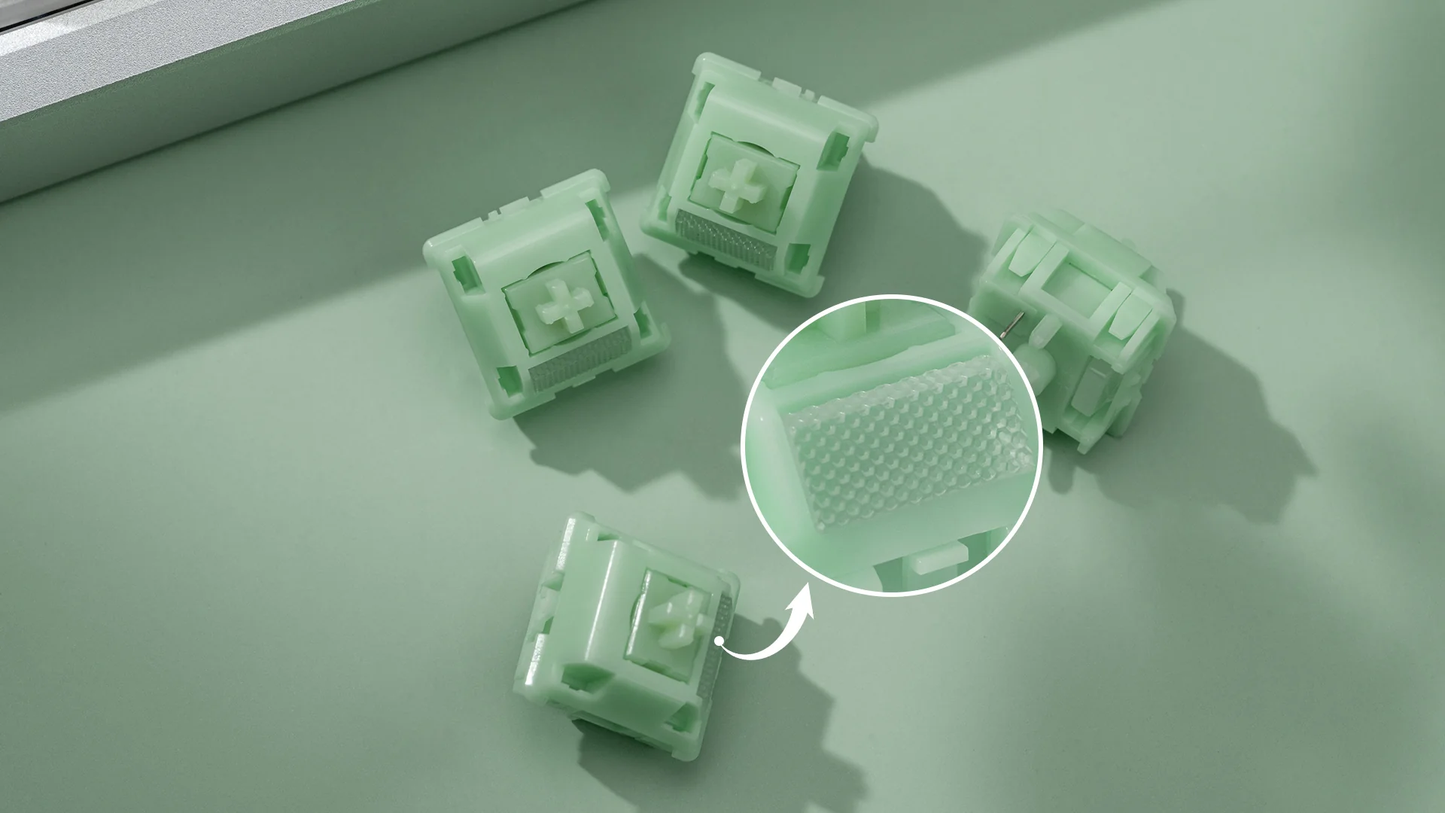

The Jade linear switches by Wuque Studio are a refined take on the popular Morandi switches, featuring a unique twist, added metal insert on the stem and bottom housing. This subtle modification enhances both the sound and feel, setting them apart from their predecessor. With a long spring design, these switches offer a snappy and responsive typing experience, while the POM housings contribute to a relatively quiet sound profile, making them a great choice for those who prefer a smooth yet controlled keystroke.
Additionally, the WS Jade linear switches come factory pre-lubed, eliminating the need for manual lubrication. The application is precise and effective, ensuring an ultra-smooth typing experience with minimal friction. Given the high-quality lubrication, there is little room for further improvement, making these switches an excellent out-of-the-box option for enthusiasts seeking both performance and convenience.

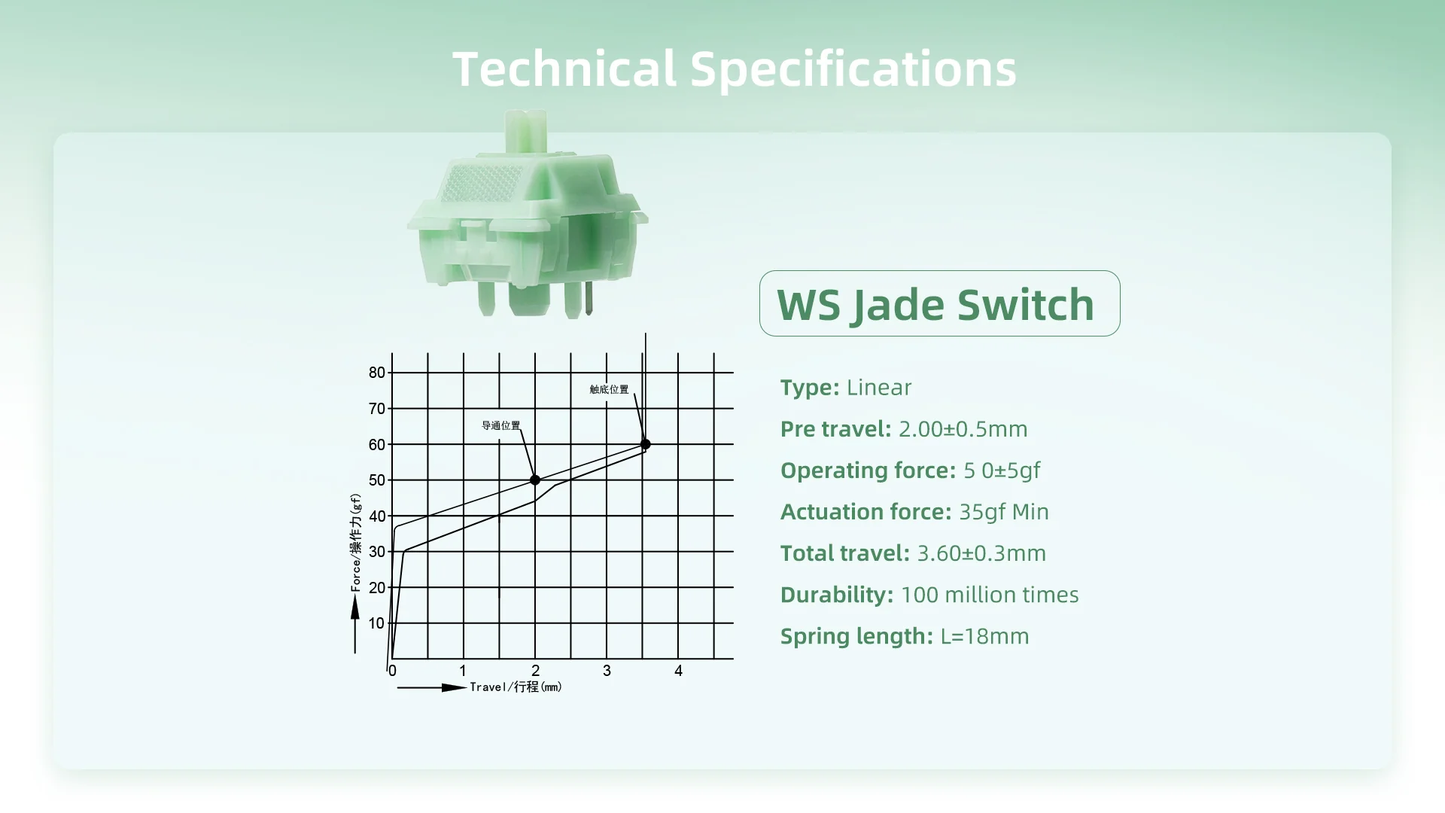

Jade
- Type: Linear
-
Top Housing Material: POM
- Bottom Housing Material: POM
- Stem Material: UPE+Stainless steel
- Light Diffuser Material: PMMA (Same as WS Morandi Switch)
- Pre-travel:2.00±0.5mm
- Operating force: 50±5gf
- Actuation force: 35gf Min
- Total travel: 3.60±0.3mm
- Durability: 100 million times
- Spring length: L=18mm/Double Stage
- Factory lubed: Yes
