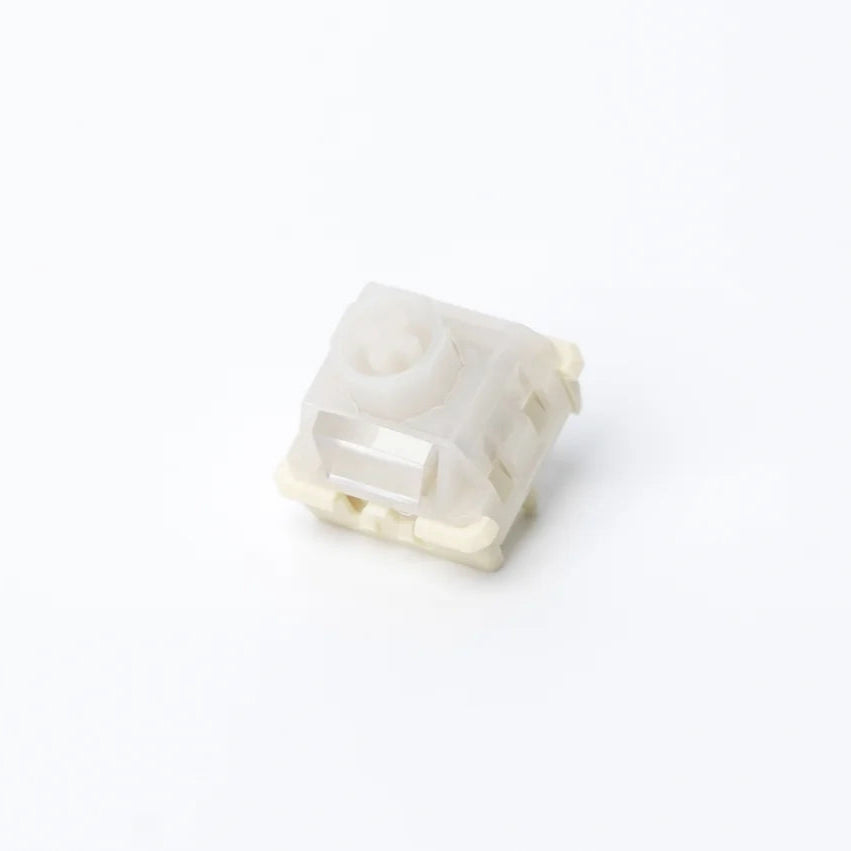

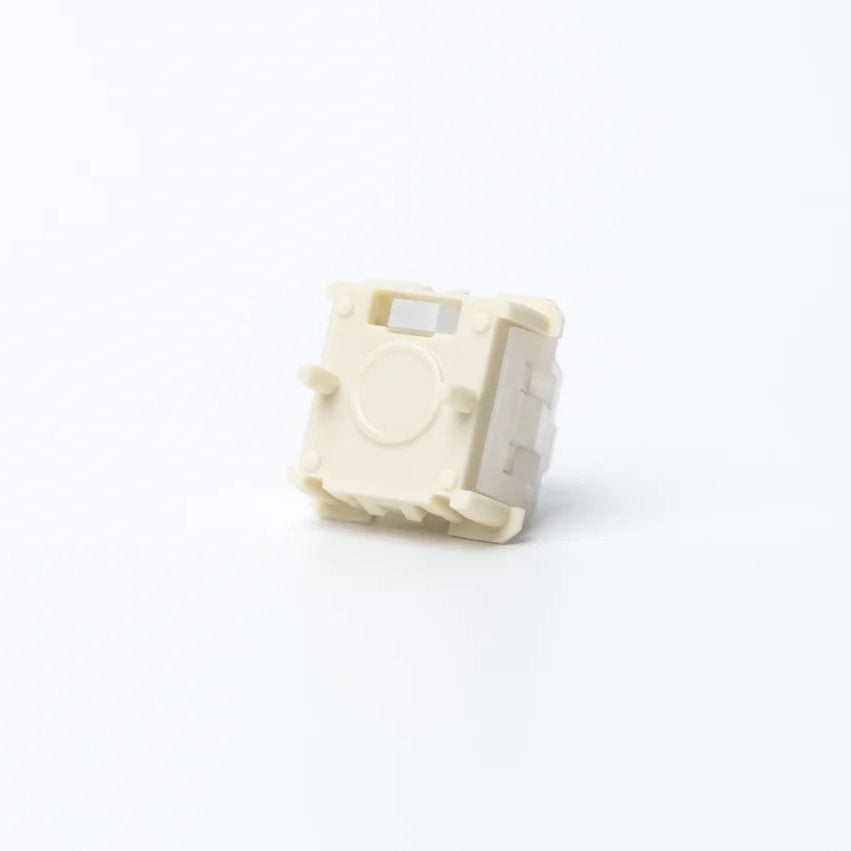

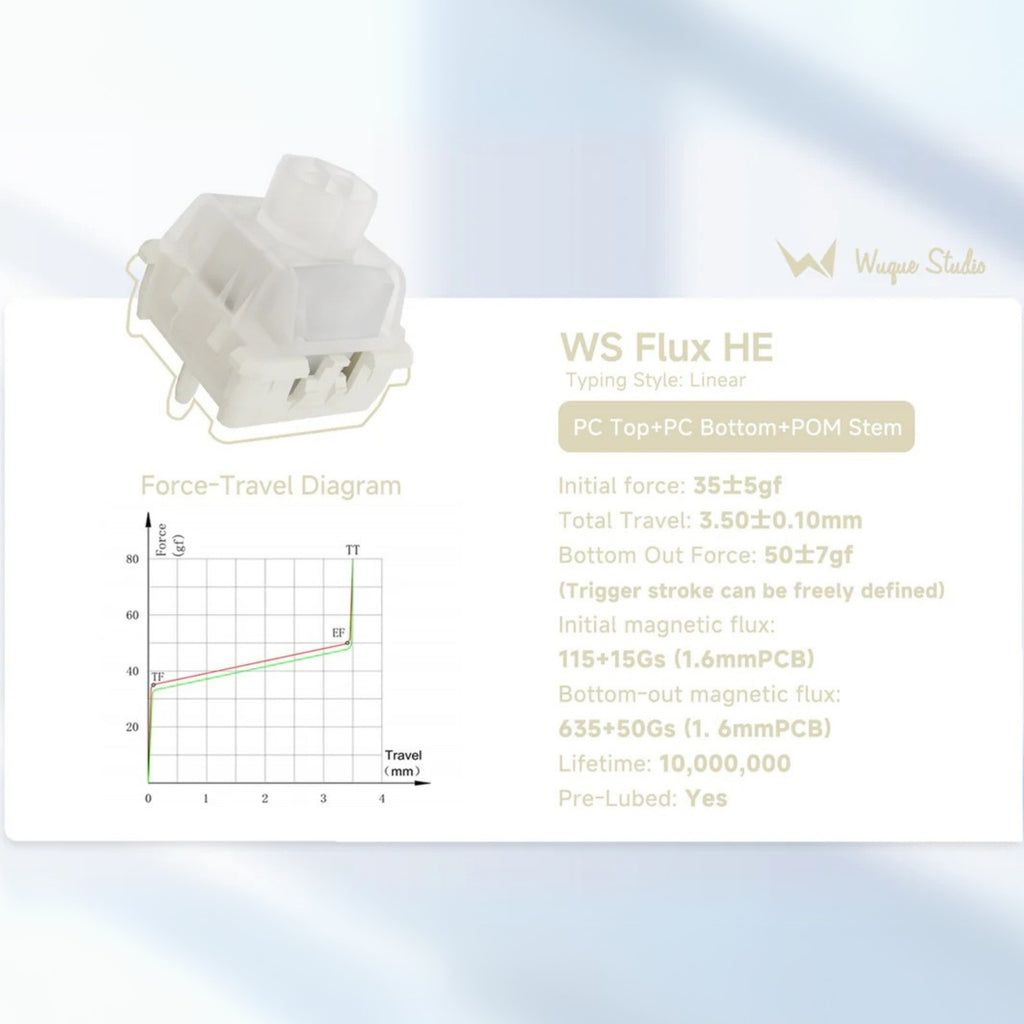

About Wuque Studios Flux Magnetic Linear Switch

Typing Style: Linear
Top Housing: PC
Bottom housing: PC
Stem: POM

Initial force: 35士5gf
Total Travel: 3.50士0.10mm
Bottom Out Force: 50士7gf
Trigger stroke can be freely defined
Initial magnetic flux: 115+15Gs (1.6mmPCB)
Bottom-out magnetic flux: 635+50Gs (1. 6mmPCB)

Lifetime: 100 million
Pre-Lubed: Yes

Features:

1 - Octagon Stem - Moving away from your typical rectangle design - the Eight-Sided Stem brings the minimum level of tolerance on every touch, from every position. Here, we've been able to create the most stable switch available

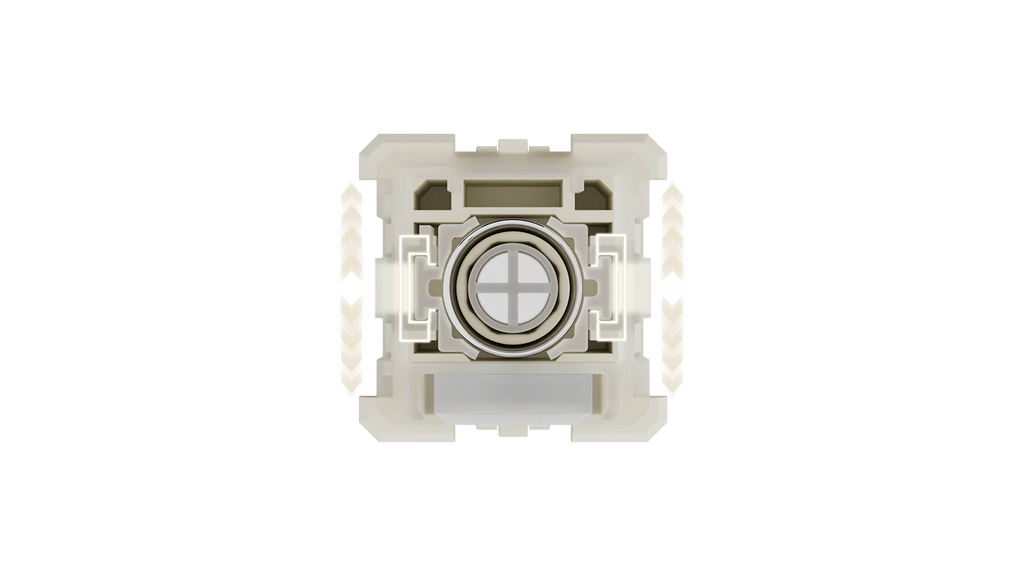

2 - T-Style Rail System - Implementing the new rail system works hand in hand with the new Stem. Together, the Stem and the Rail System work harmoniously in creating not only an extremely smooth experience, again, it also helps in creating the most stable switch.

3 - Four Point Rebound System - While not so obvious, the Four Point Rebound System continues the trend of creating stability and smoothness.

4 - Precision Lubing - Using top of the line machinery, we've been able to create a lube process that is extremely consistent across four points including the two rail systems, center core, and spring.
