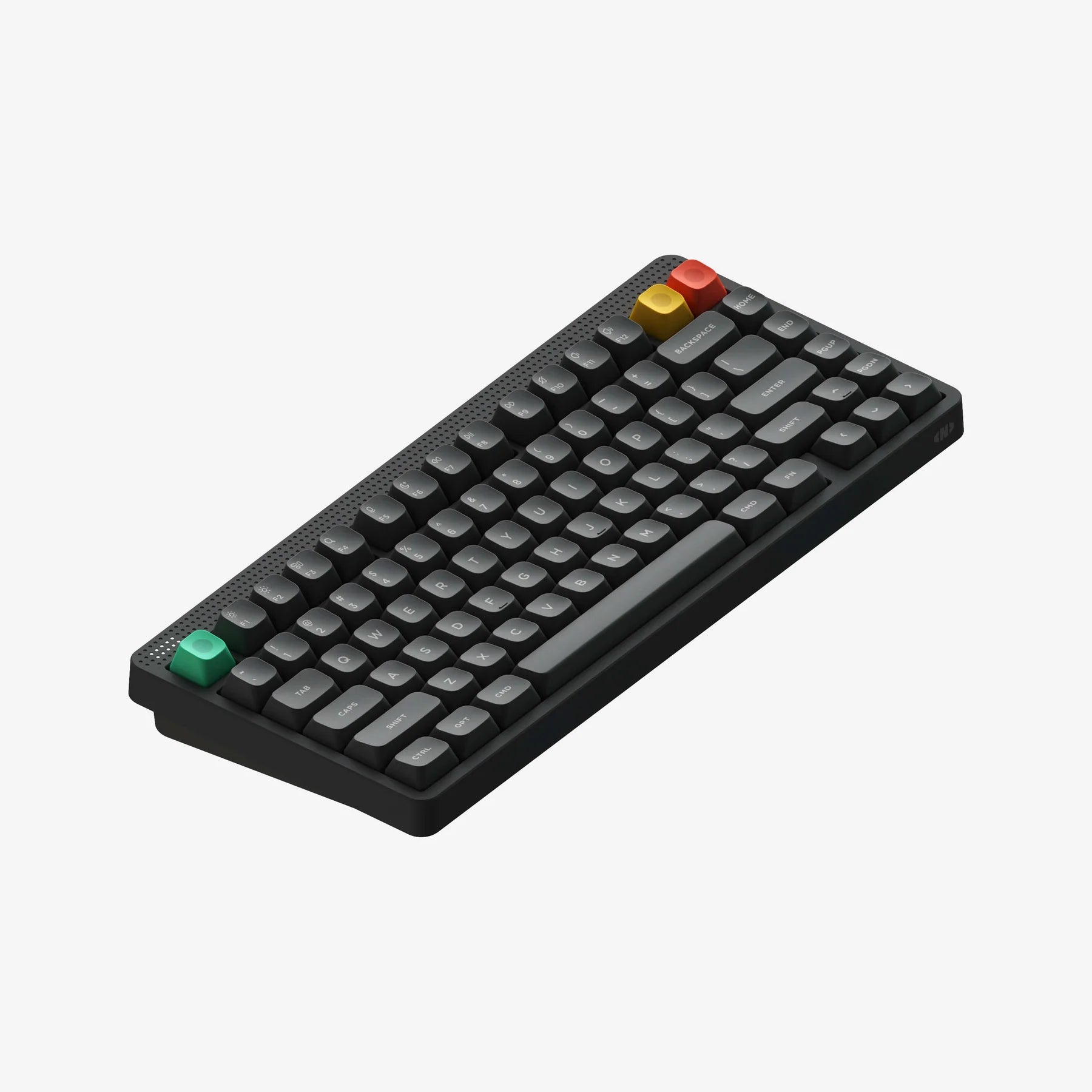

NuPhy Node Series High-profile

NuPhy Node Series High-profile

75 / Lunar White / Red Max
$139.90
Skip to product information
NuPhy Node Series High-profile

NuPhy Node Series High-profile

$139.90
Size
Color
Switch
Details

75% or 100%?

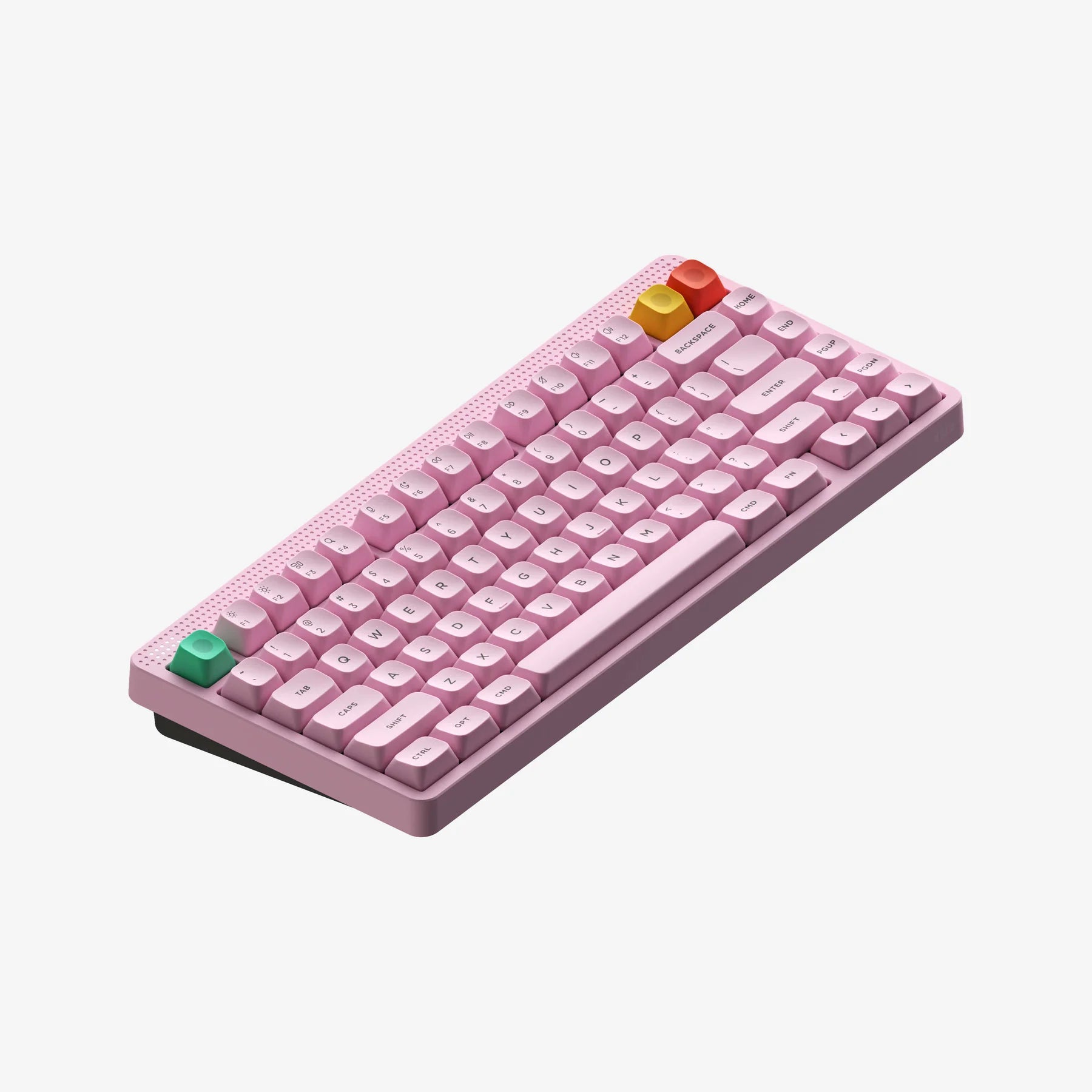

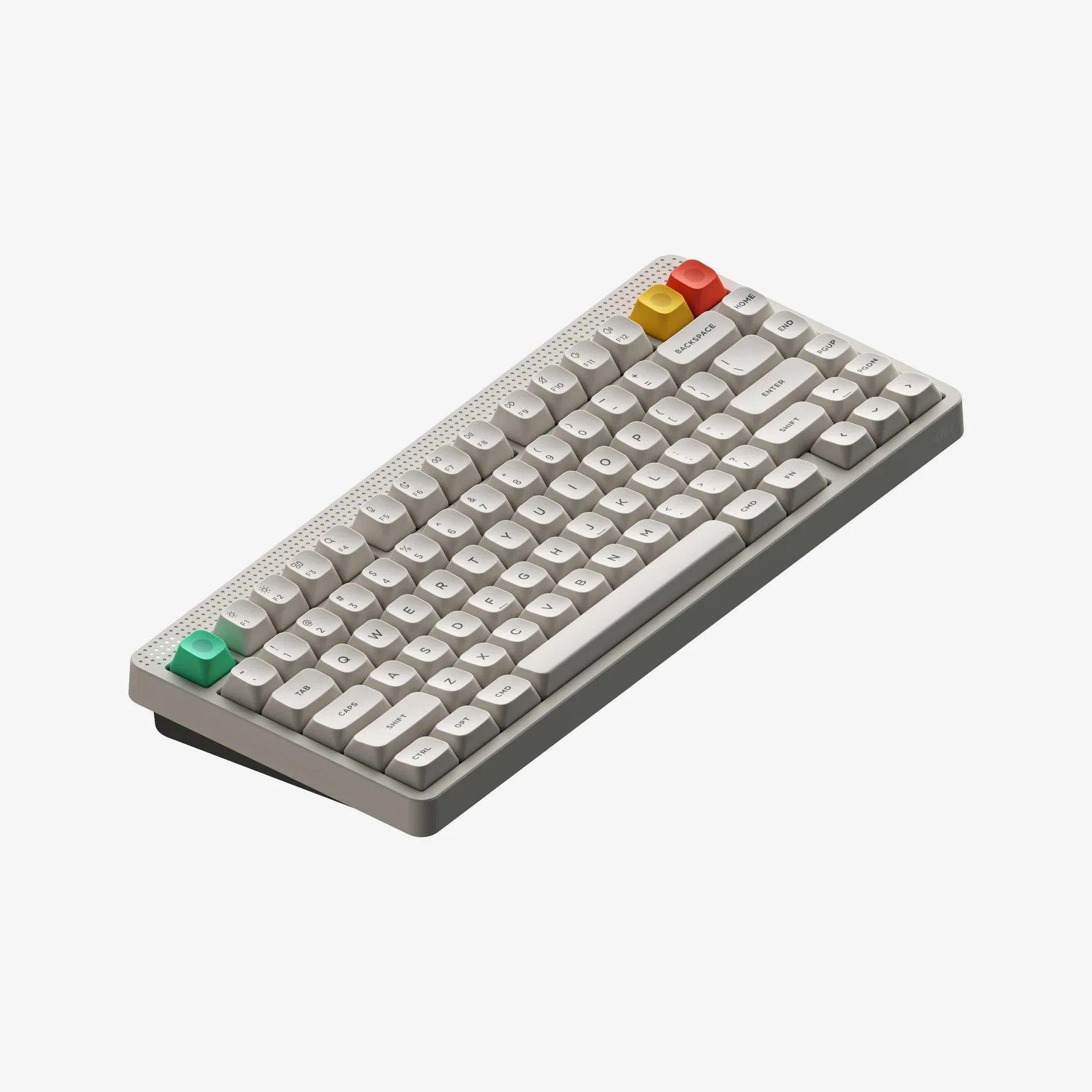

Node 75


The 75% layout when you want more spaces

The smaller brother of the Nodes is a big space saver, for a dozen or so less keys it gives you plenty more desk space, and a weight light enough to be carried around with all the essentials like the F-row still intact.

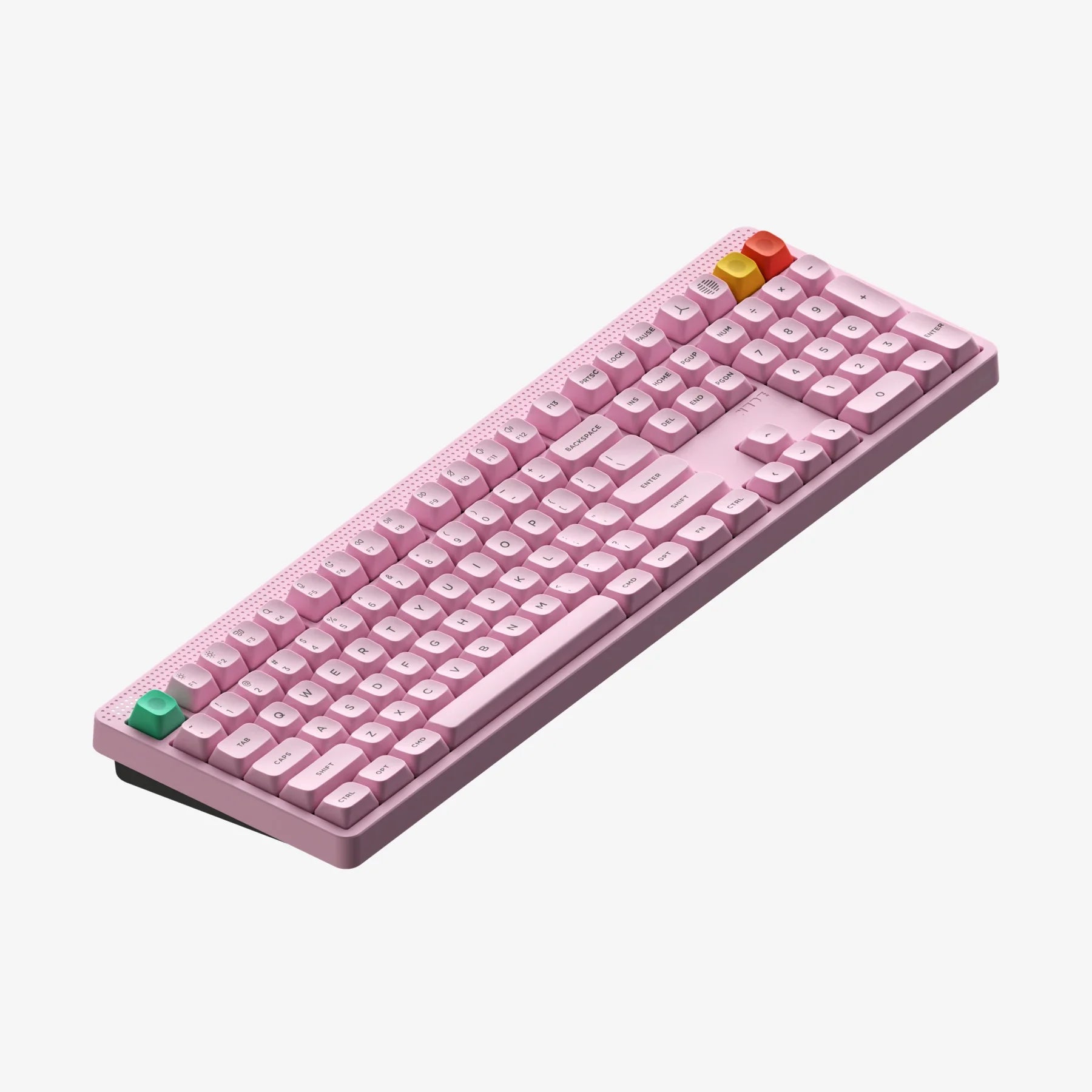

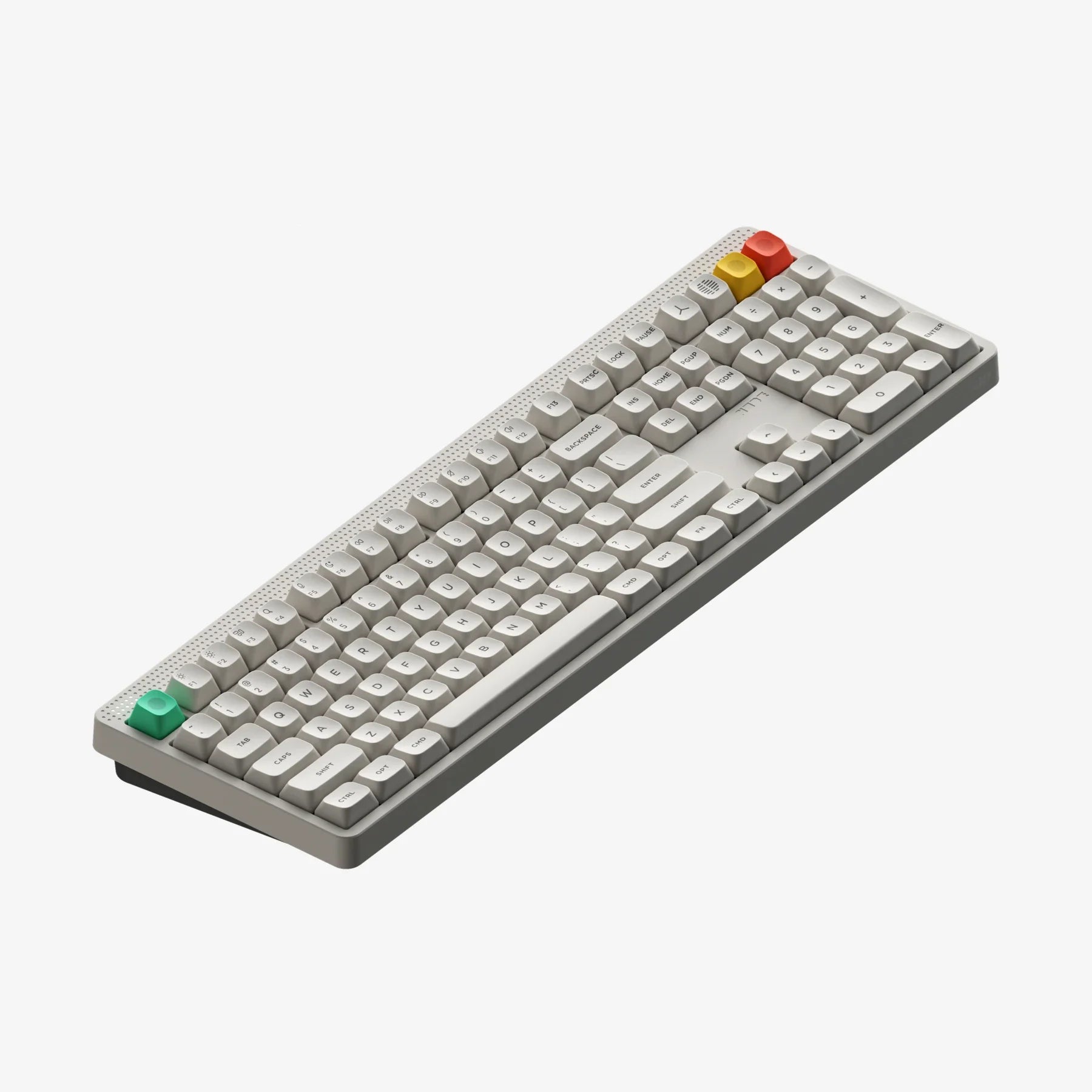

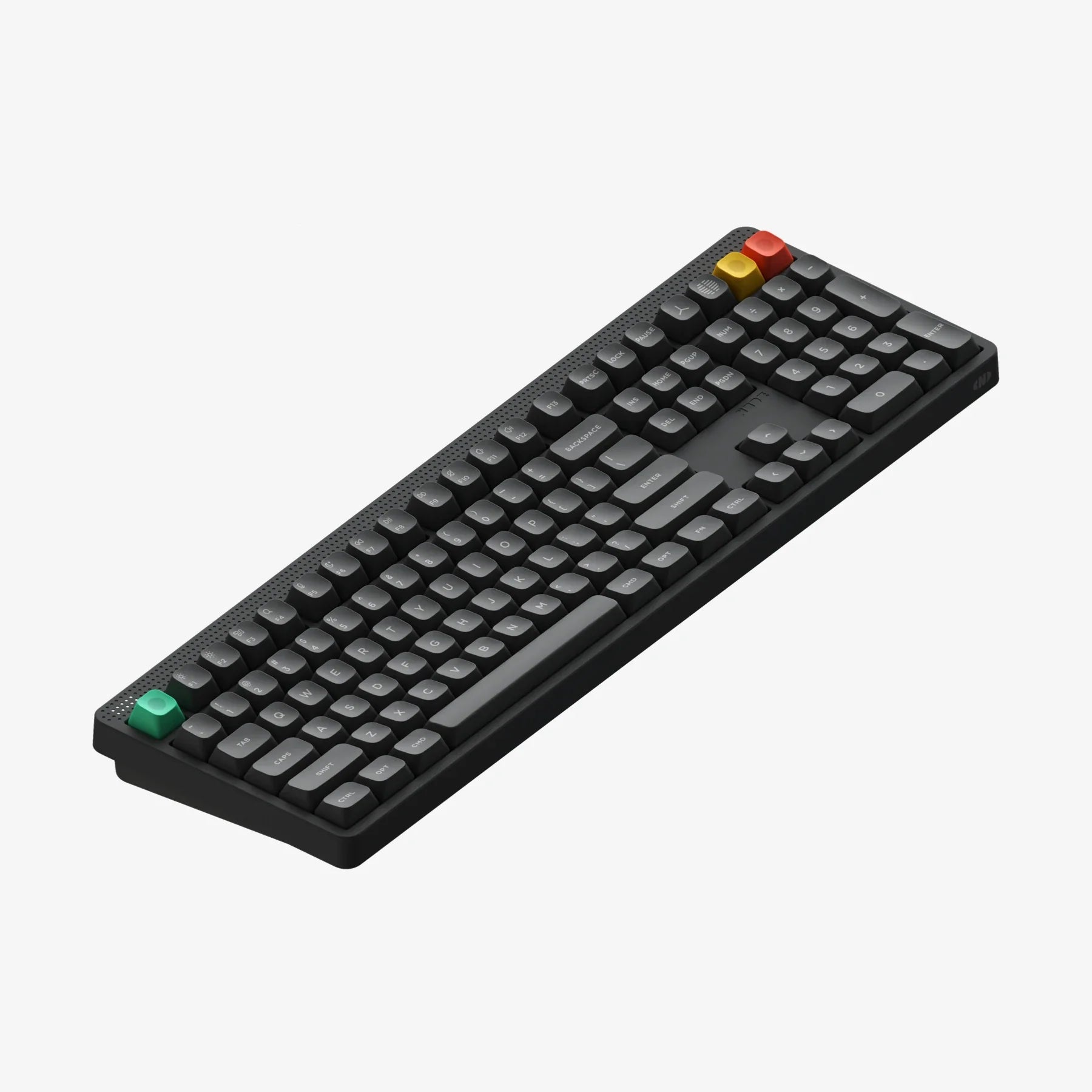

Node 100


The 100% layout when you need it at 100%.

He's all business, having his tools of the trade with him all the time. An ample-sized Numpad, the F-row, and the touch zone. You know the kind of job you will need him for, and you can count on him.

A guide to switch selection

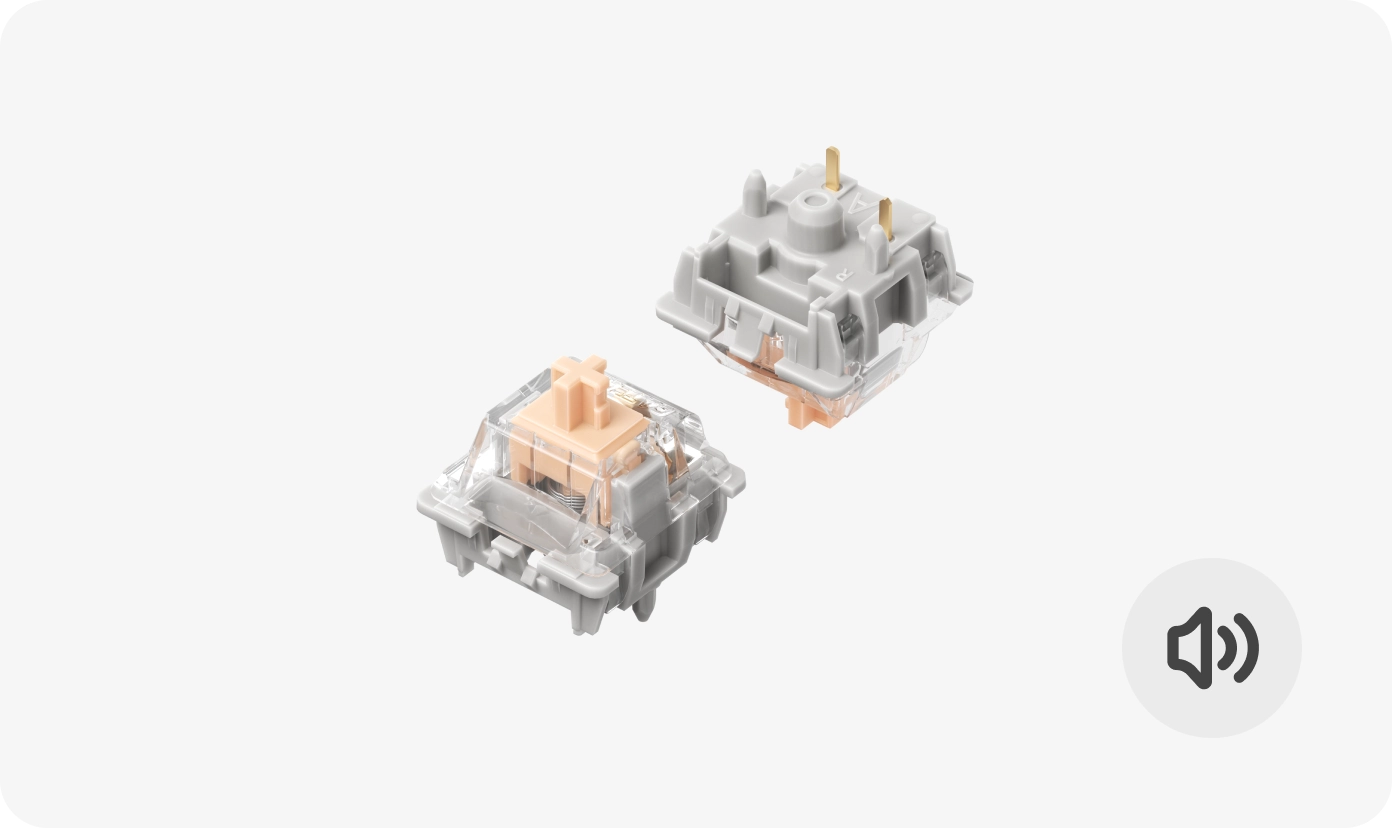

Blush Max
Brown Max

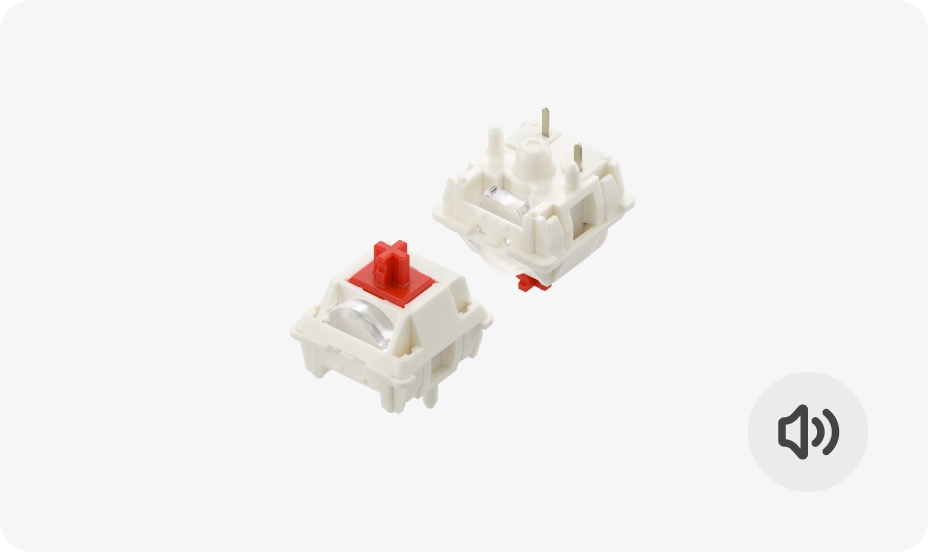

Red Max

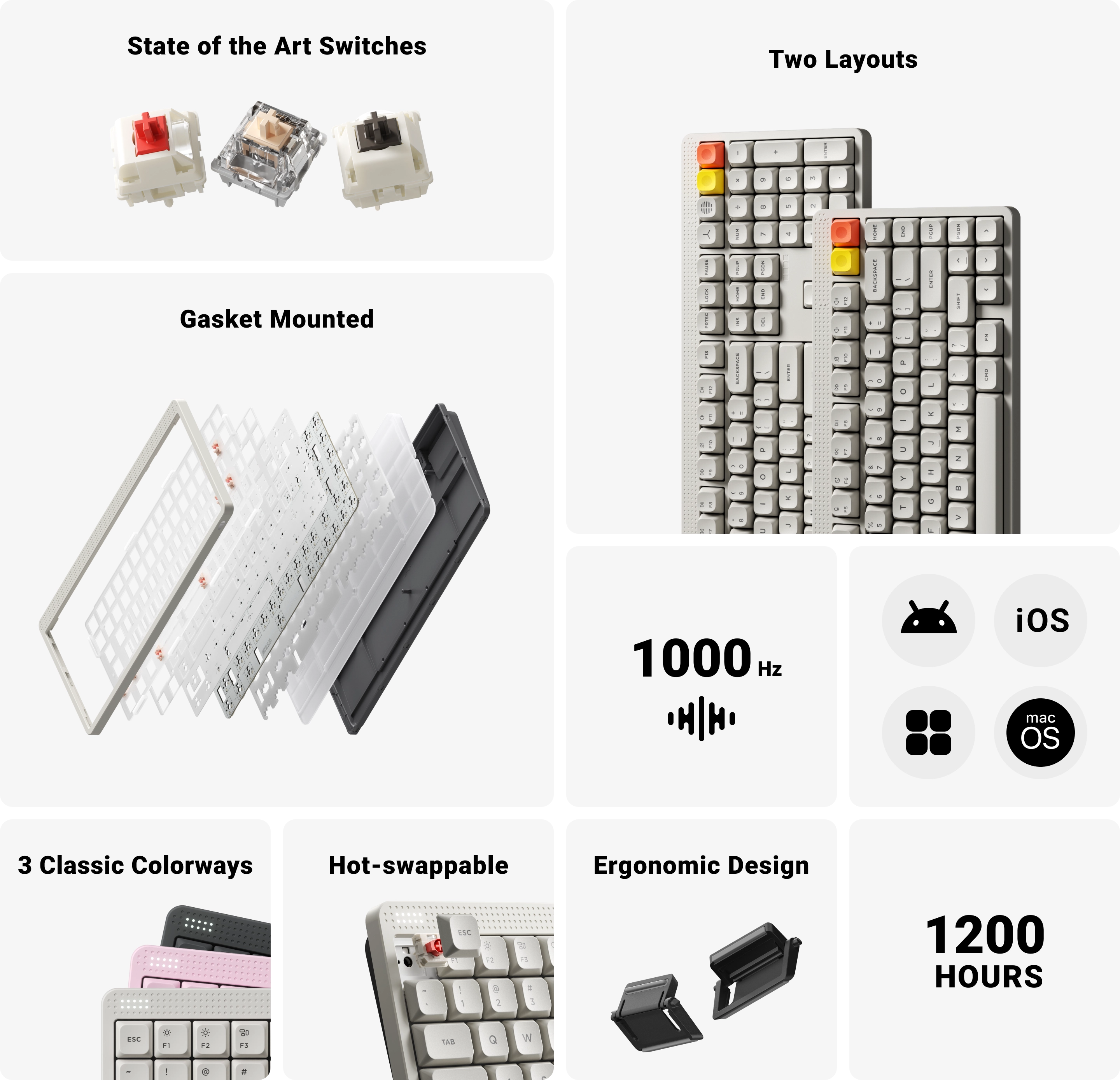

首屏图片

IN THE BOX








PRE-BUILT KEYBOARD


1 x Node75/100 High-Profile Keyboard
1 x 2.4G Receiver
1 x USB-C to USB-C Cable
1 x USB-C to USB-A adapter
1 x Keycap/Switch Puller
7 x Extra Keycaps
1 x Quick Start Guide (with FAQ & Instructions) — Download





TECH SPECS

SPECIFICATION
Layout: ANSI 75%
Number of Keys: 82
Switch Type: High-profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: North-facing RGB-LED
Backlight Modes: 20
Compatible System: macOS/Windows/Android/iOS
Operating Environment: -10 to 50℃

CONNECTION
Mode:2.4GHz, Wired (USB-C) or Bluetooth 5.0
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate: 1000Hz
Bluetooth 5.0 Polling Rate: 125Hz


MATERIALS
Top Case: ABS
Bottom Case: ABS
Plate Material: PC
Keycap: Double-shot mSA


SIZE AND WEIGHT
318.1 mm x 141.5 mm x 18.9 mm
(12.5 inches x 4.5 inches x 0.72 inches)
827 grams (1.82 pound)
Type Angle 6º/9º/12º

POWER AND BATTERY
Battery Capacity: 4000mAh
Working Time (all lights on): 60~100 hours (lab test result)
Working Time (all lights off): Up to 1000 hours (lab test result)

Diagram of a computer keyboard with dimensions.
SPECIFICATION
Layout: ANSI 100%
Number of Keys: 109
Switch Type: High-Profile 3.0
Stabilizer Type: Plate Mounted
Mount Type: Gasket
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: North-facing RGB-LED
Backlight Modes: 20
Compatible System: macOS/Windows/Android/iOS
Operating Environment: -10 to 50℃

CONNECTION
Mode:2.4GHz, Wired (USB-C) or Bluetooth 5.0
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate: 1000Hz
Bluetooth 5.0 Polling Rate: 125Hz


MATERIALS
Top Case: ABS
Bottom Case: ABS
Plate Material: PC
Keycap: Double-shot mSA


SIZE AND WEIGHT
441.8 mm x 141.7 mm x 18.9 mm
(17.39 inches x 5.57 inches x 0.74 inches)
1084.3 grams (2.39 pound)
Type Angle 6º/9º/12º

POWER AND BATTERY
Battery Capacity: 4000mAh
Working Time (all lights on): 60~100 hours (lab test result)
Working Time (all lights off): Up to 1000 hours (lab test result)
