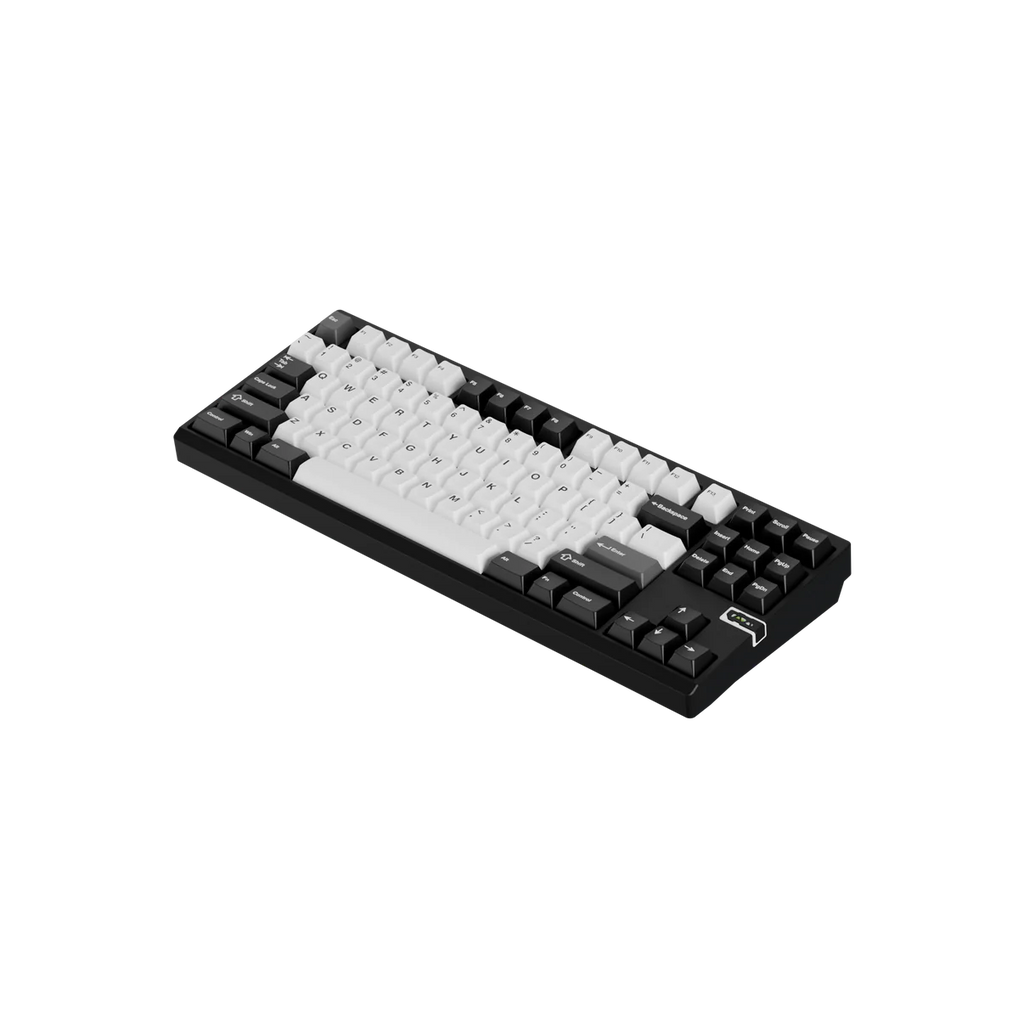

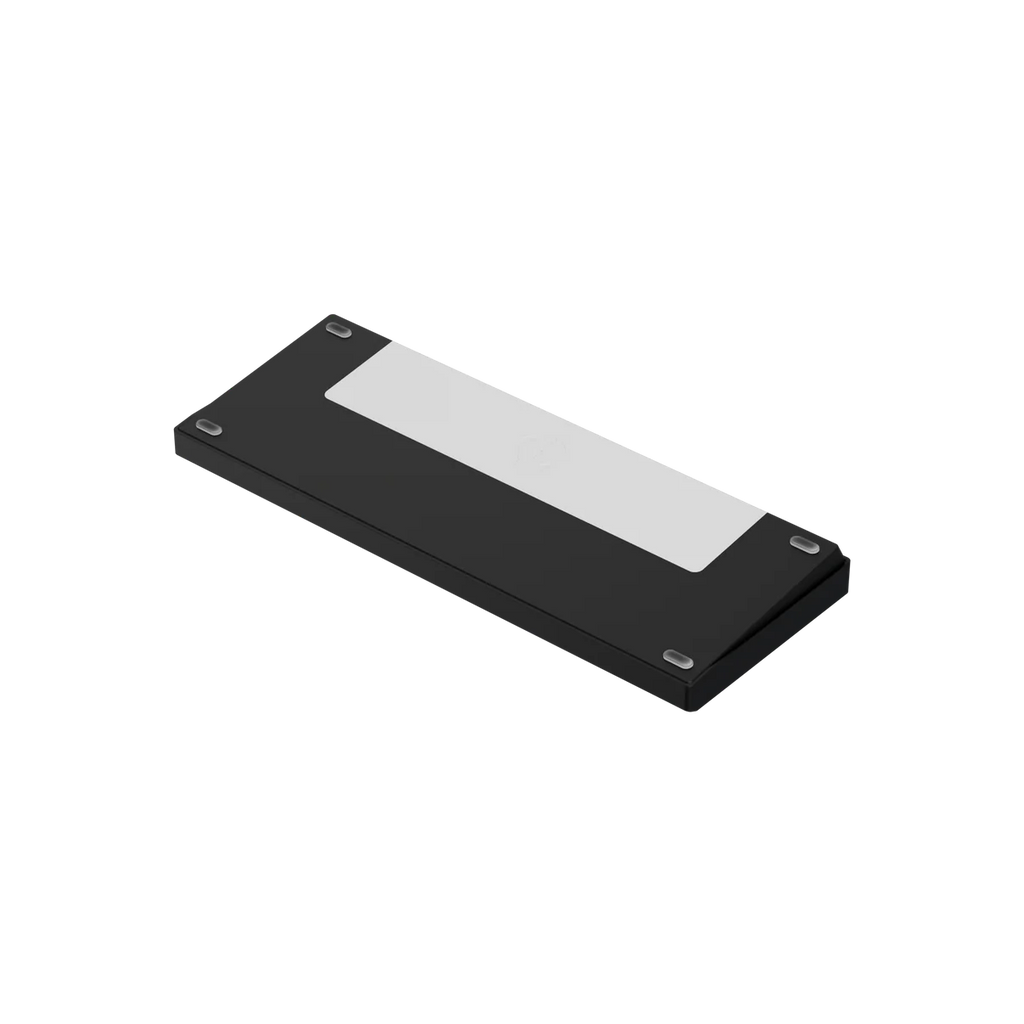

About NDTKL

Specifications:

• Keyboard Layout: TKL

• Case Material: Aluminum

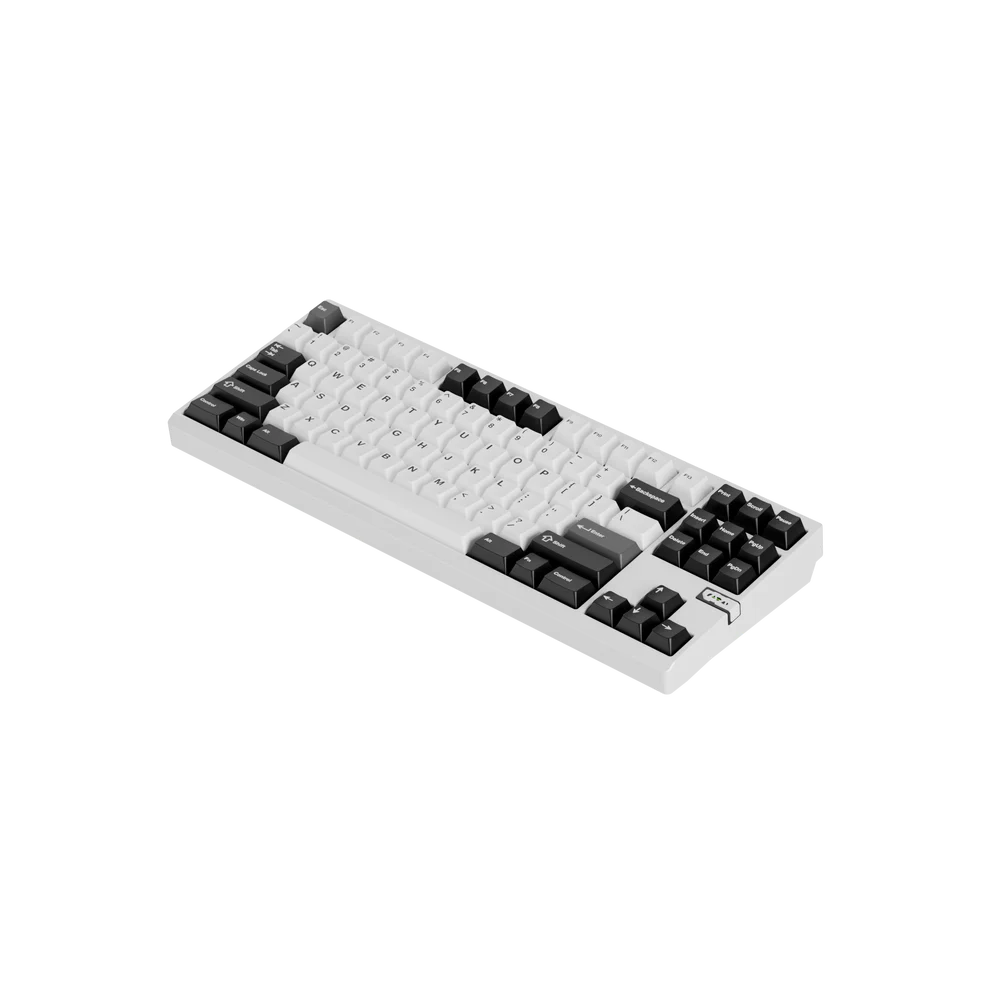

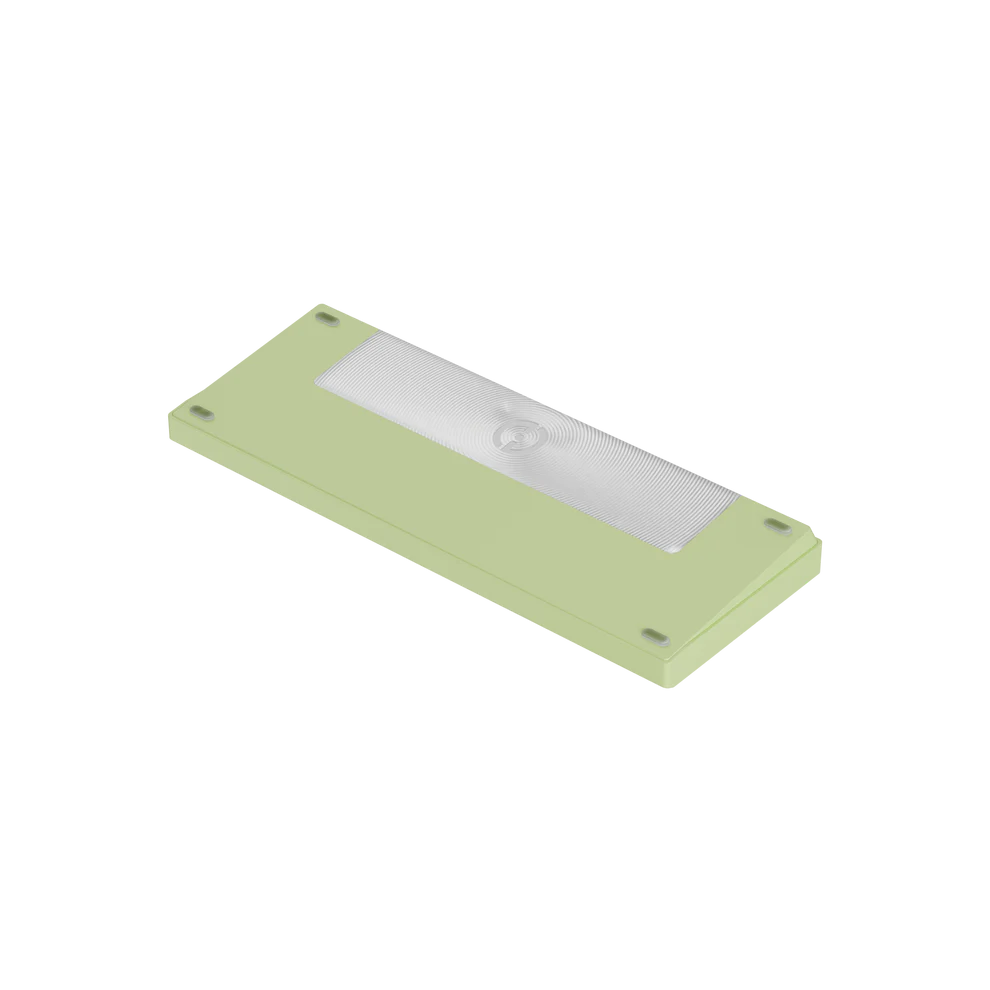

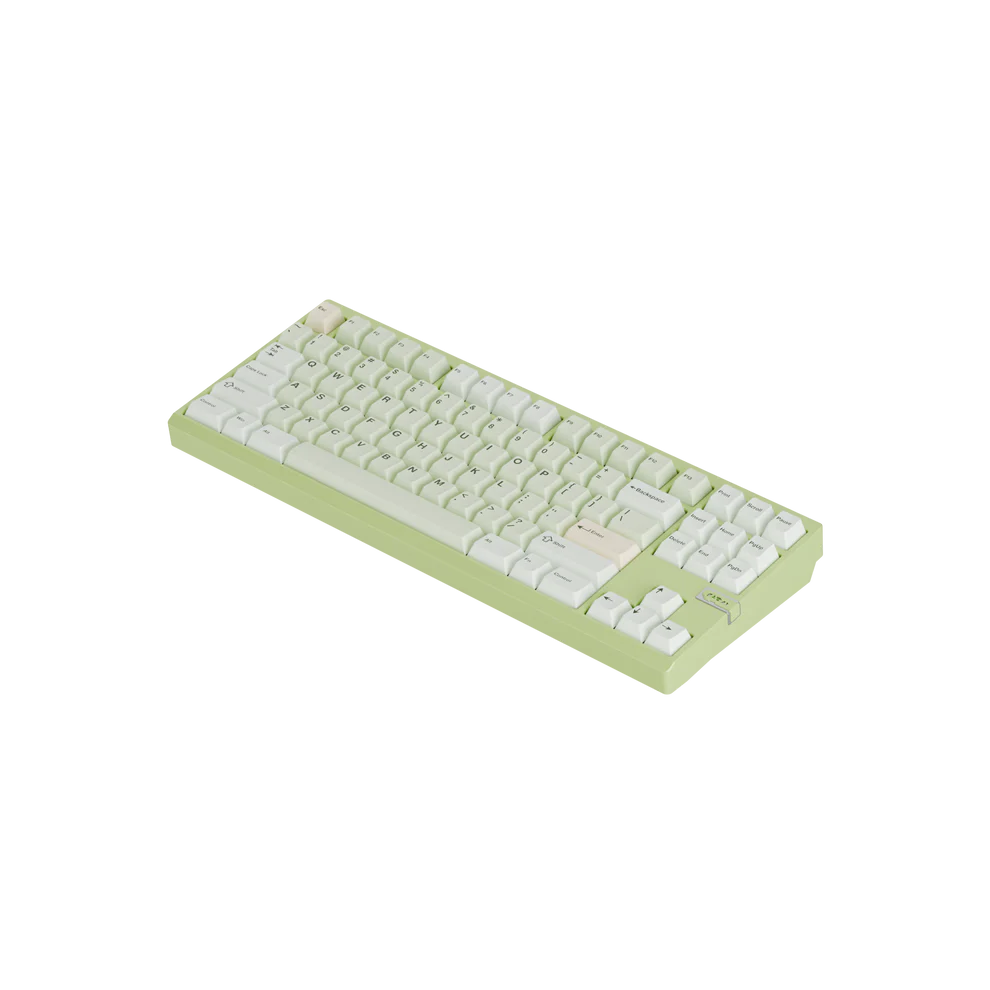

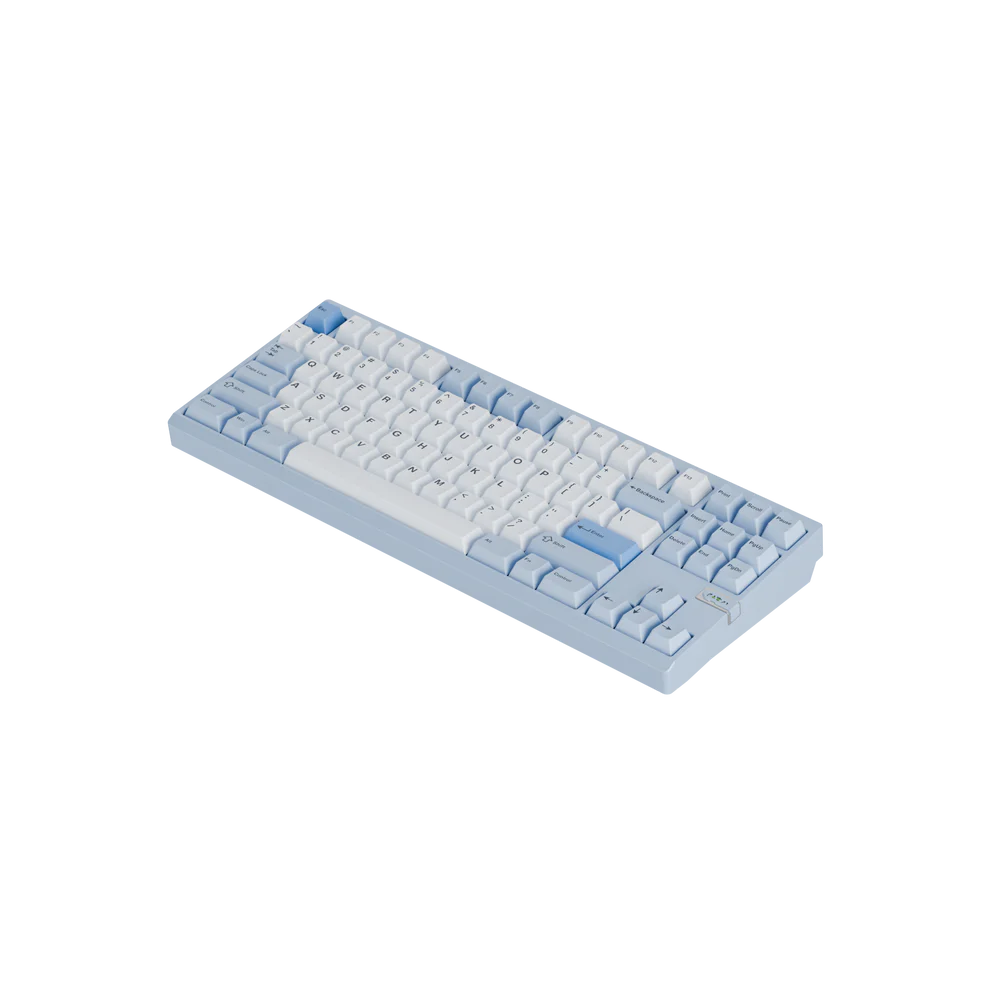

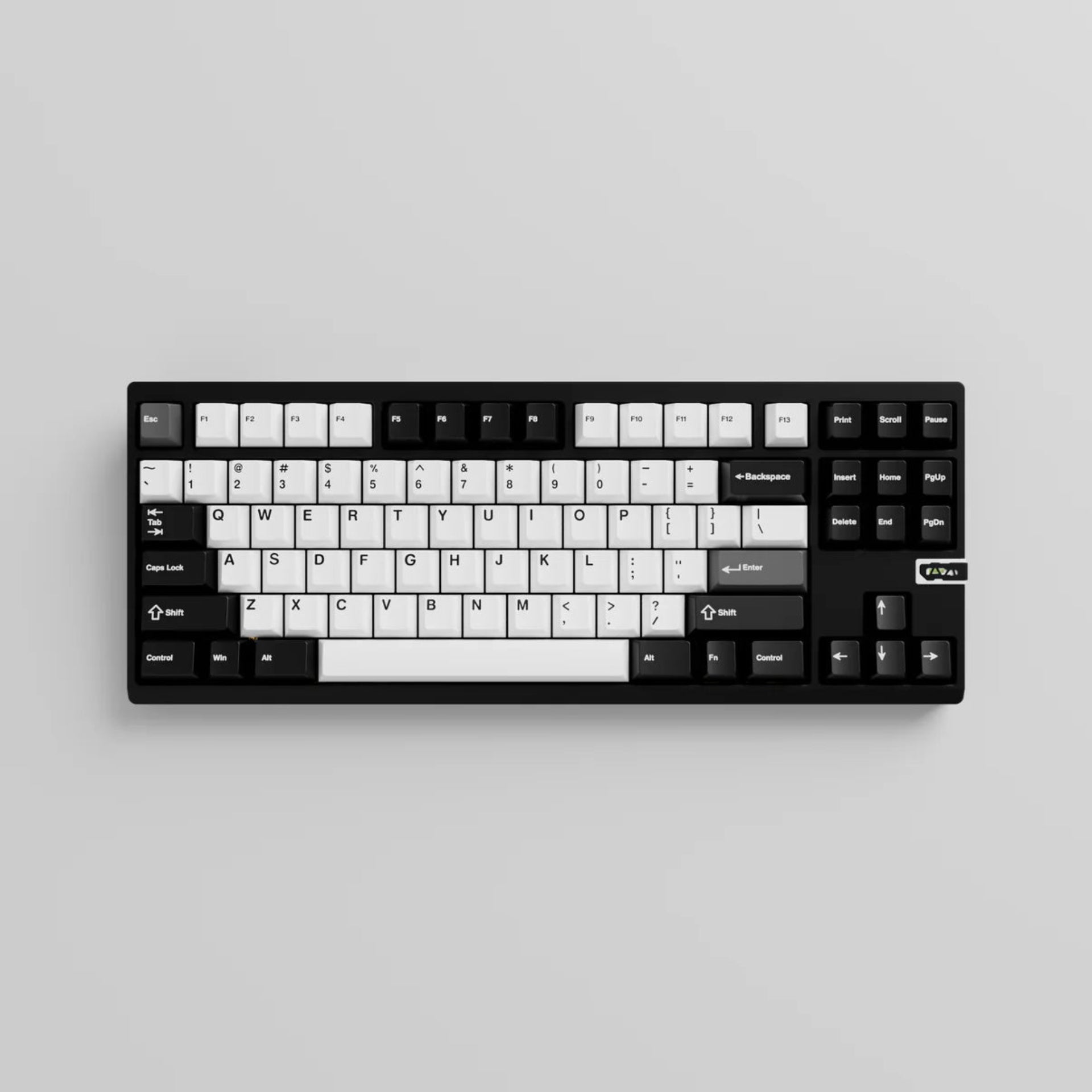

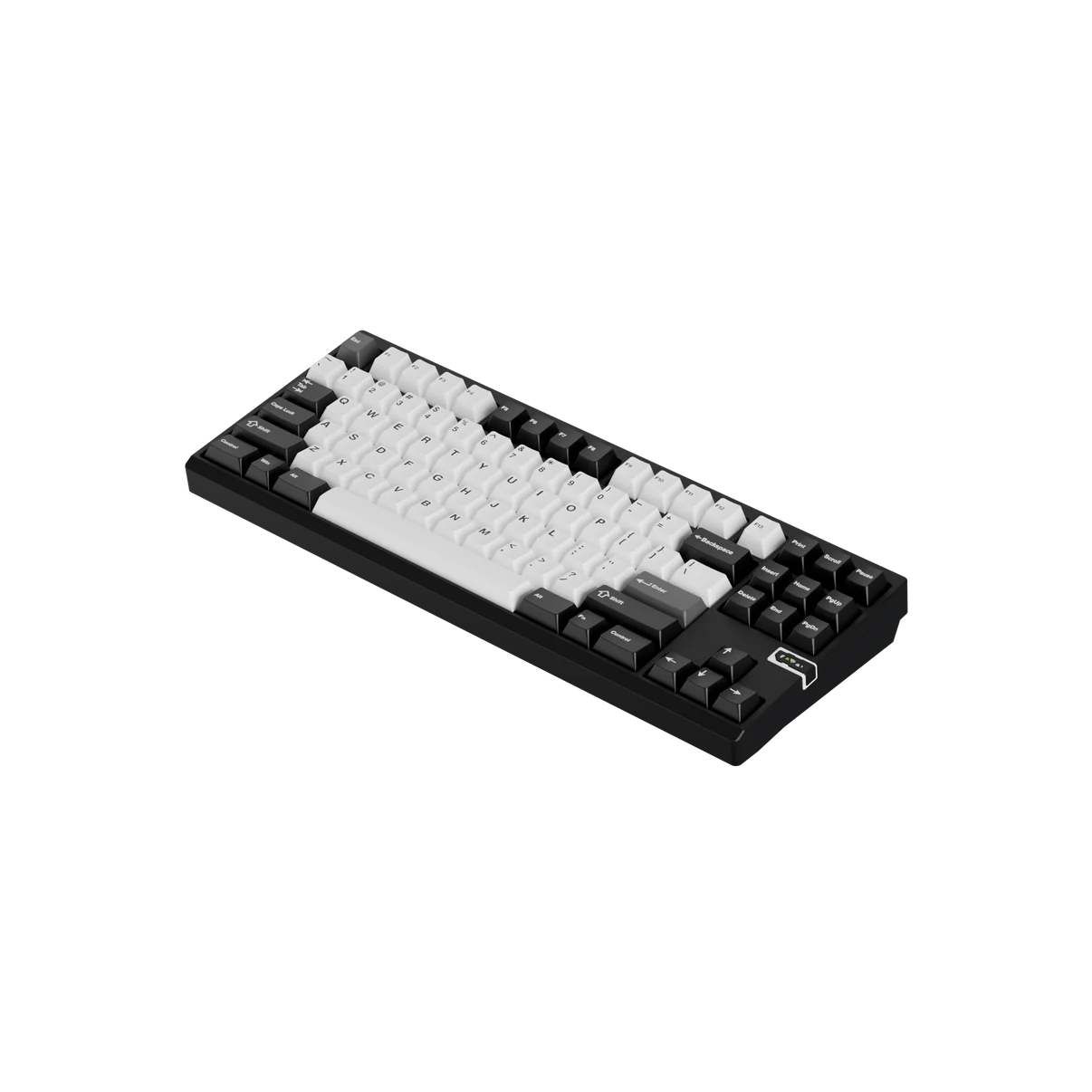

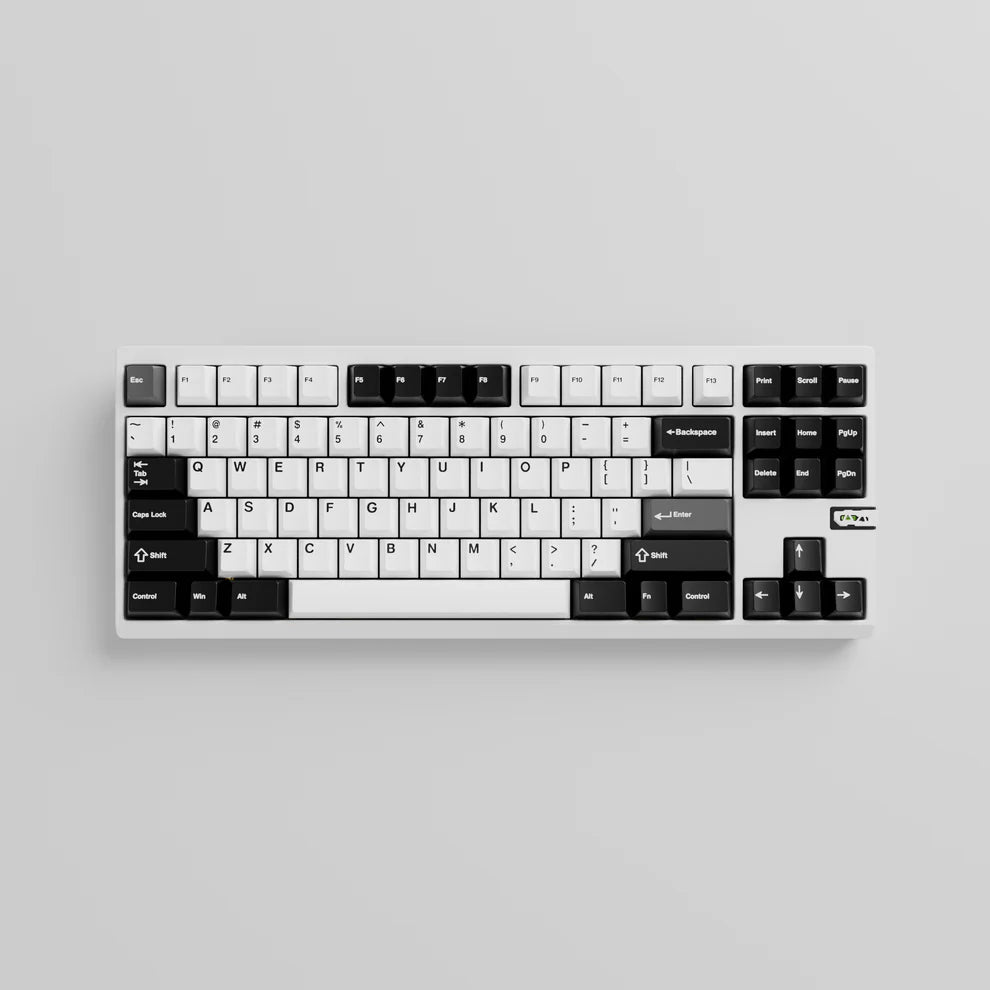

• Case Color：

  • Anodized - Black

  • Electrophoretic - White, Sky Blue, Milky Green

• Back Plate Material: Aluminum

• Typing Angle: 6.5°

• Front Height: 17.4mm

• Back Height：33.8mm

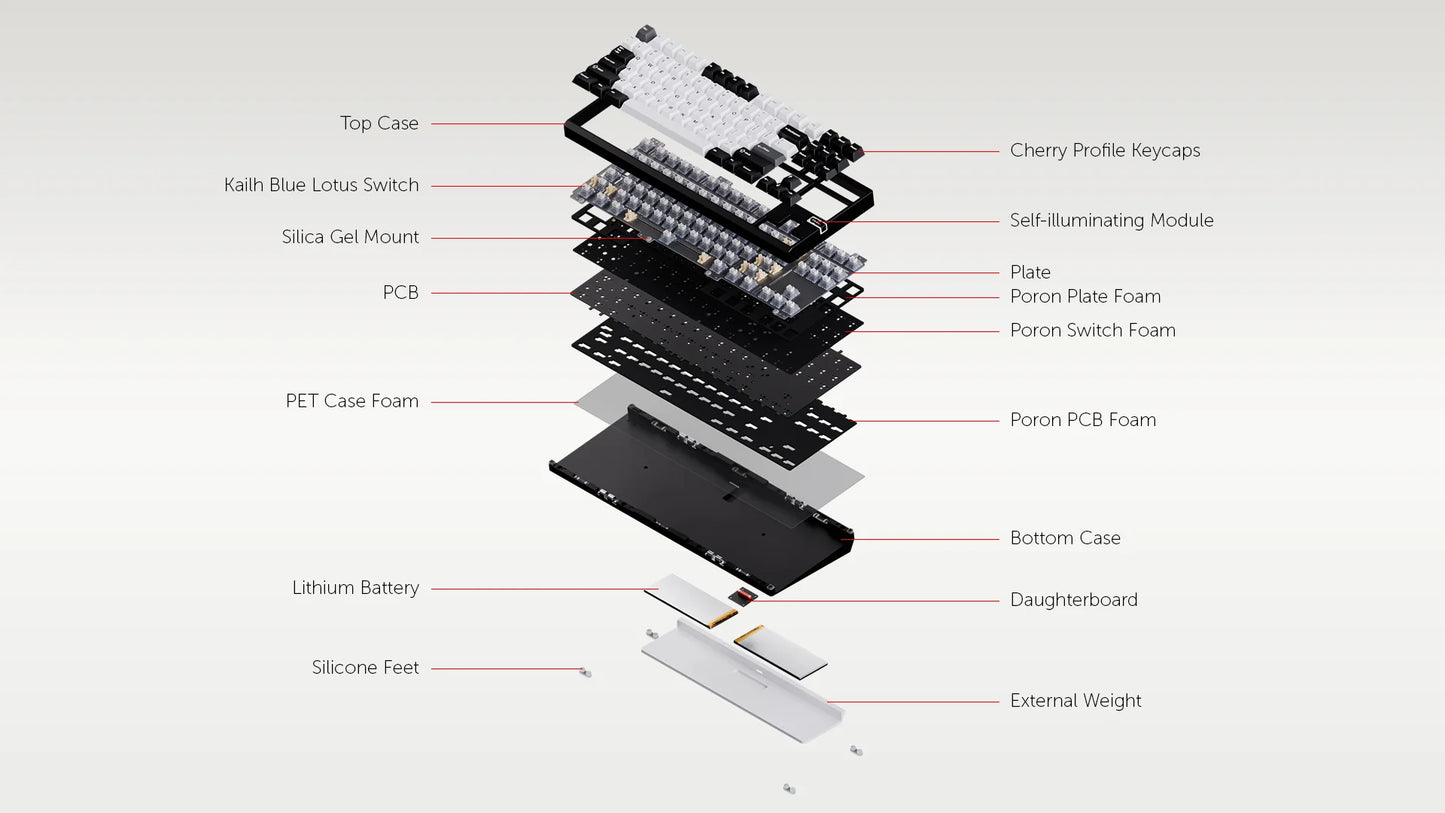

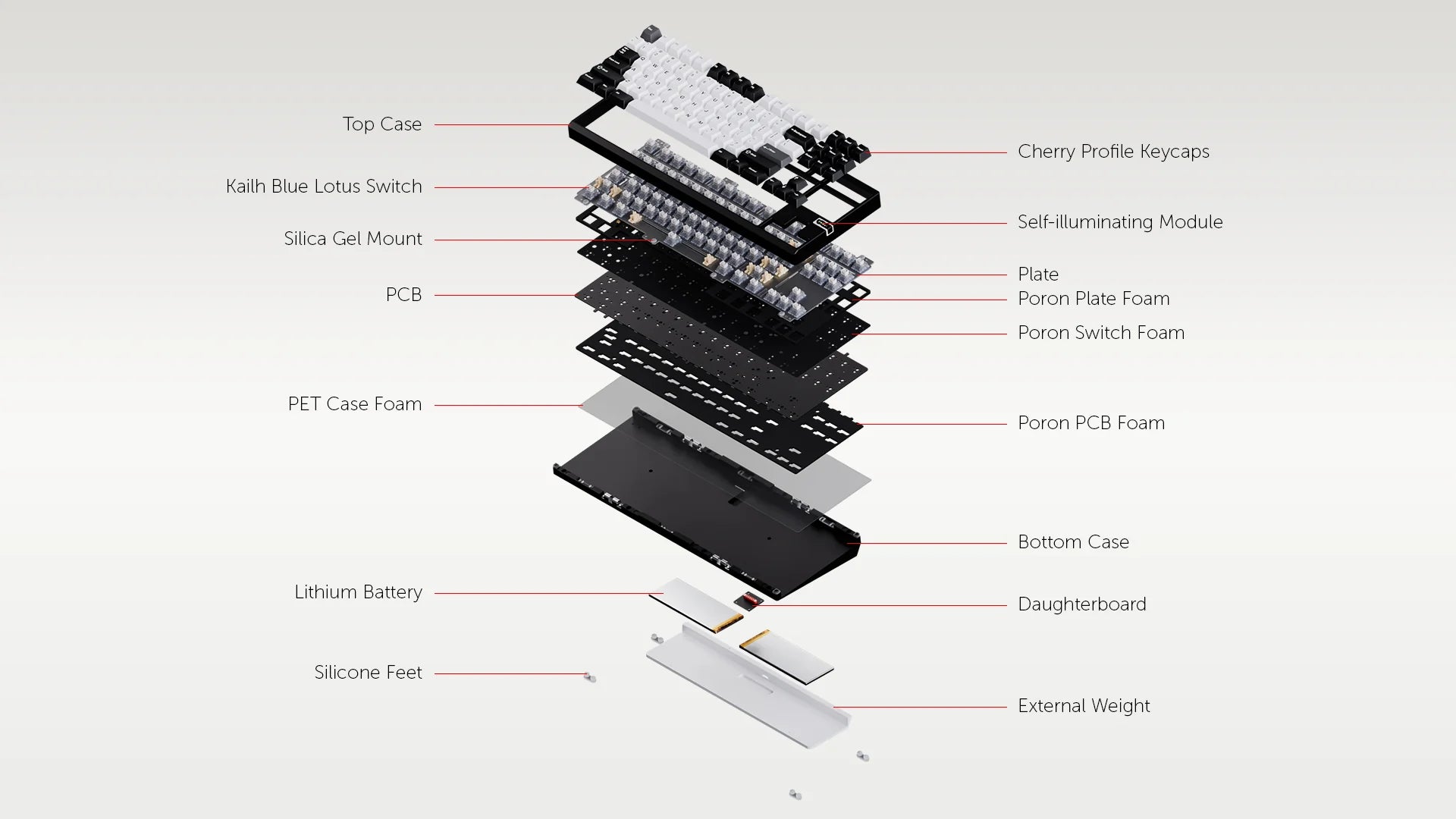

• Mounting Styles：

  • Gasket

  • Elastic Silicone Mount

• Dampening Foam:
  • 4 Foams Foam Layers

• Stabilizer Type: Plate Mount

• Support RGB: Yes

• Switch Type: South Facing LED Switch

• Default Plate: PC

• Battery Type: Lithium

• Battery Capacity: 1800*2

• PCB Thickness: 1.2mm Flex Cut

• ANSI Support: Yes
• VIA/QMK Support: N/A

• Driver Type: Chilkey Web Driver

• Supports N-Key Rollover: Yes

• Hotswap Support: Yes

• Bluetooth Version: 5.3

• PCB: Tri-mode

• Dimensions: 357.3*138.3*33.8mm

• Bluetooth PCB Polling Rate: 125

• 2.4GHz Polling Rate: 1k

• Wired Polling Rate: 1k

• OS Compatibility: Window/Mac

• Switch Specs:

  • Kailh Blue Lotus (Linear)
  • Top Housing Material: PC
  • Bottom Housing Material: PA66

  • Stem Material: POM

  • Lubed: Factory lubed

  • Total Travel：3.5mm

  • Pre-Travel: 1.9mm

  • Preload：45±10gf

  • Bottom-out Force: 50±10gf

  • Lifespan: 50 Million Key Strokes

• Keycap Specs:
  • Keycap Material: PBT

  • Keycap Technology: Doubleshot

  • Keycap Profile: Cherry

  • Keys QTY: 87 keys
