Hall sensors are sensitive to temperature variations, resulting in potential significant changes to the magnetic field of the keyboard during transportation, influenced by temperature and environmental shifts (imagine shipping from California to Maine).
About MOD007v3 HE Year of Dragon Cream Yellow Magnetic Switch

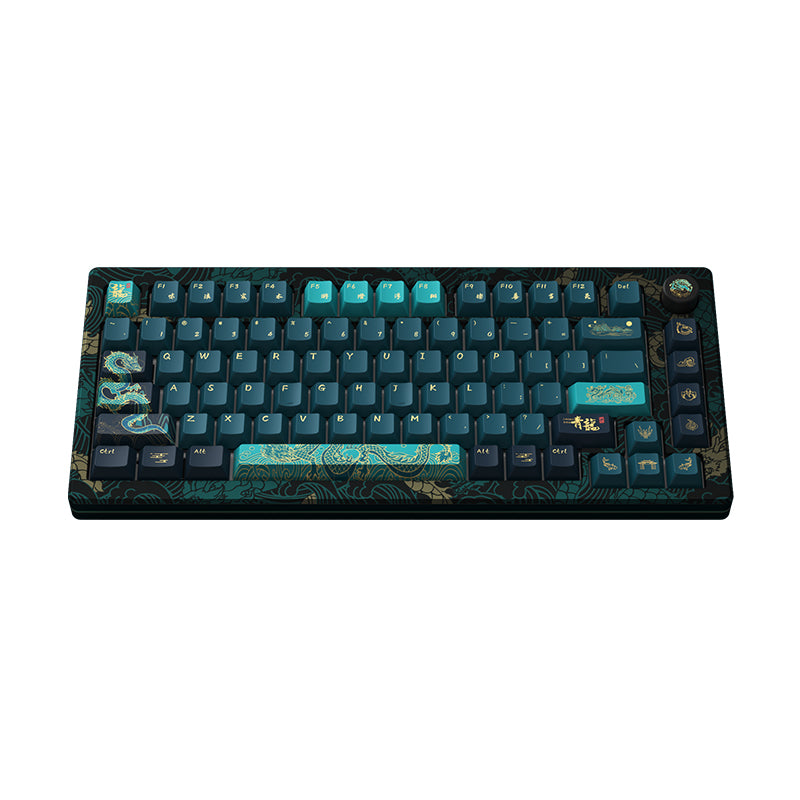

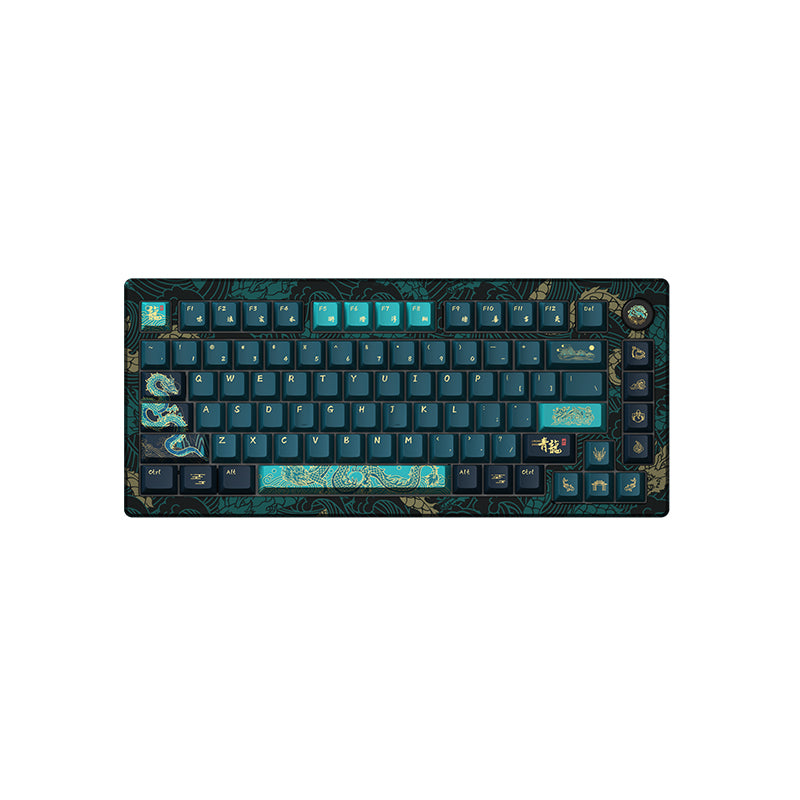

The Limited Edition Akko Year of Dragon Keyboard
- 8K Hz Polling Rate Wired USB-C Solution;
- Cyan Chinese Dragon Theme with Cherry Profile Dye-Sub Keycaps;
- Three Tone Anodized Aluminum Case;
- Customizable Actuation Distance: 0.1mm~4.0mm;
- Rapid Trigger: 0.1mm~2.5mm;
- Dynamic Keystrokes (up to 4 actions);
- Mod-Tap;
- Toggle Key;
- Bottom Deadzone Setting.
Latest Firmware(as of 24/6/03): V103(rfV108 mledV102)
Disclaimer: the keyboard does NOT support mechanical switches. However, you can purchase the PCBA separately that supports 5-pin mechanical switches.
Reminder
To optimize your typing experience, we recommend promptly upgrading to the latest firmware upon receiving the keyboard. Additionally, manually calibrate the keyboard through ‘About – Maximum Key Travel Calibration – Start Calibration’ by gently pressing every key.
Roar Mode
Roar Mode enhances your keyboard input speed by ensuring the fastest response from each key after activation. Please note that the backlight will be disabled in Roar Mode to ensure optimized performance. Additionally, Roar Mode may impact the input simulator.
More powerful Magnetic Switches
Ultra-accurate typing experiences adjustable in 0.1mm.
Applying for the electromagnetic principle, operated by Hall effect sensing.
8k Hz Polling Rate
Providing a global 8000Hz polling rate, this enhancement increases operational data sent per second to 8x, ensuring near-zero latency control.
FR4 & Copper Plate
MOD 007 V3 HE Year of Dragon utilizes an pre-builded FR4 plate and a copper plate for a stiffer and higher-pitched sound profile.
Cyan Chinese Dragon Theme
Cyan is a lucky color in Chinese culture, which represents hope and honor. In Chinese mythology, Cyan Dragon is in charge of the east section of the heave, the department of spring, nature and vital wood.
AKKO’s designers draw upon the elements of the Cyan Dragon as a foundation, refining and innovating.
Three Tone Anodization
The case undergoes an extremely intricate three tone anodization process. Enable the keyboard to have enhanced tactile sensation, be more durable, and scratch-resistant.
Mod-Tap
Mod Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.
A single keypress can achieve two functions: holding down the key for one function, and press the key for another.
On-board Memory
Settings are stored on the hardware, and there is no need to activate the software in the background.
Cream Yellow Magnetic
Type: Linear
Bottom-out Force: 50 ± 10gf
Total Travel: 4.0mm
Pre-Travel: 2.0 ± 0.5mm
