About GATERON Mini i Tactile Switch

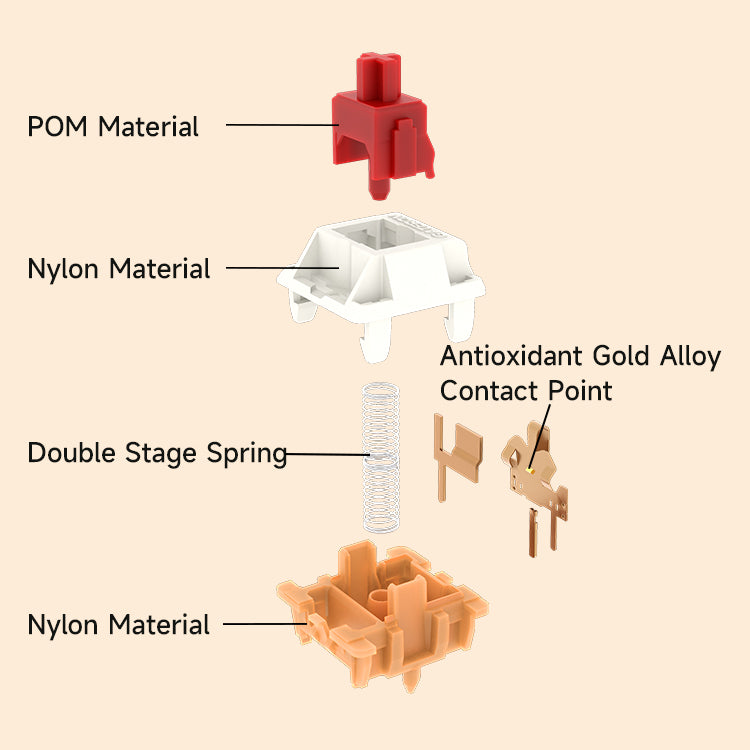

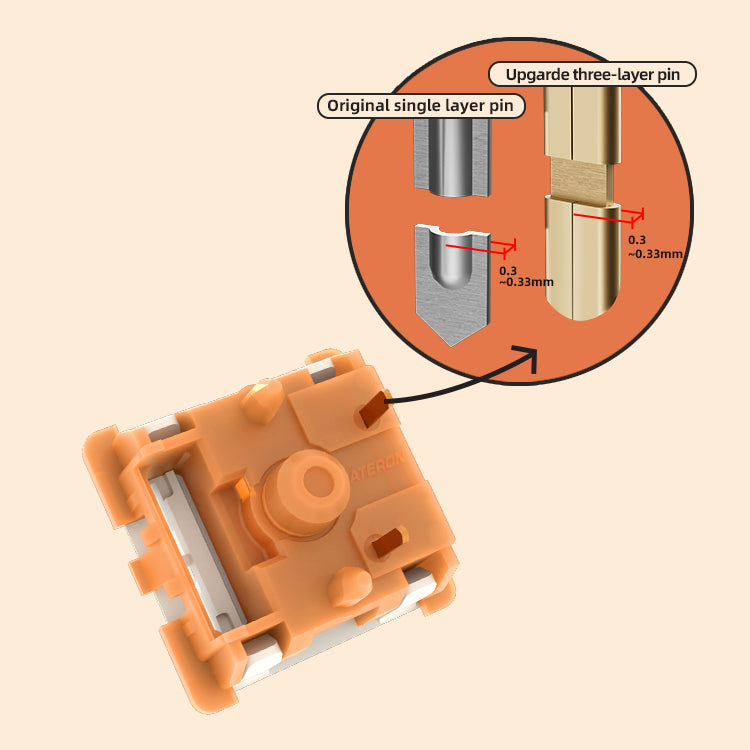

The Gateron Mini i Switch features a core black technology with an antioxidant gold alloy contact point, ensuring reliable conductivity and corrosion resistance. It also utilizes a three-layer pin design, providing more reliable conduction and reducing the likelihood of pin deformation for a longer lifespan. Additionally, the switch is equipped with a 22mm double-stage spring, offering improved rebound and enhanced feedback for a better typing experience.

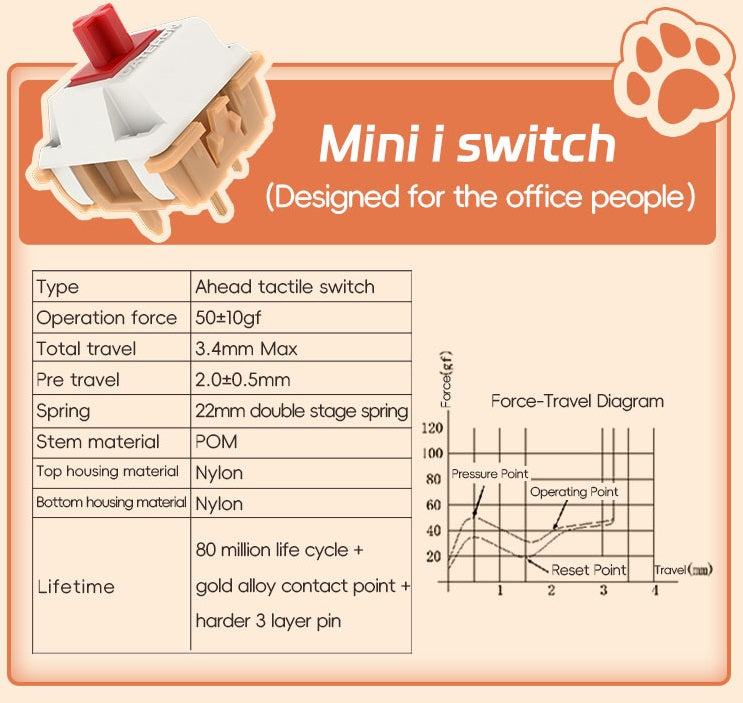

Mini i
- Type:Ahead tactile switch
- Operating Force:50+10gf
- Total Travel:3.4mm Max
- Pre Travel:2.0+0.5mm
- Stem:POM
- Top Housing:Nylon
- Bottom Housing:Nylon
- Spring:22mm double stage spring
- LED Support:SMD or Plug In
- Pre-Lubed: Yes
- Pins:5-Pin
