About Meletrix ZOOM75 HE

Keyboard Specifications:

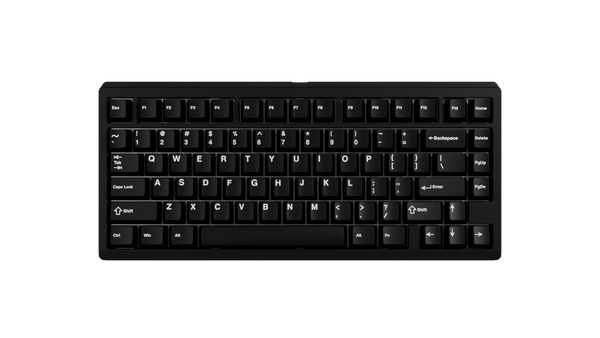

ZOOM75 HE Black Prebuilt: ZOOM75 Black Case + HE Module+ WOB Keycaps

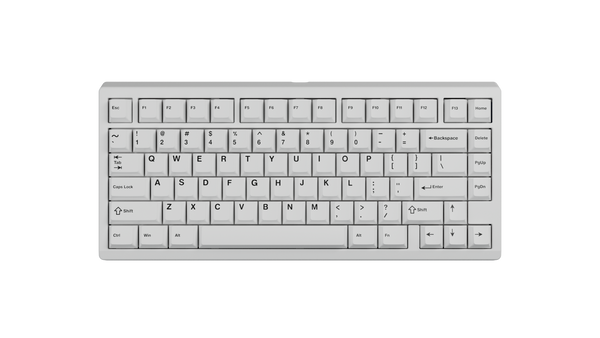

ZOOM75 HE White Prebuilt: ZOOM75 White Case + HE Module+ BOW Keycaps

• Gasket Mount Design
• 75% Layout
• PCB: 1.6mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Default plate: Alu
• Case Material: 6063 Aluminum
• Case Finish: Electrostatic glitter white top and bottom case
• Backplate: White: PVD silver back plate Black: PVD black back plate
• External Weight: White: Anodized gold weight Black:  Anodized gold weight
• Switches Type: Gateron KS37B, compatible with KS37
• The Orientation of the Switches: North Facing
• No SS Internal Weight
• Boog 75 Wired Polling Rate: 1000hz
• QMK or VIA Support: No, customization requires to use of our independent driver.

• Total weight: About 3kg

Keycap Specifications:

• WOB/BOW Keycaps


Switch Specifications:

• Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
• Initial Force:30±10gf.
• Total travel:4.0±0.2mm.
• Operation Lifetime:150,000,000 Cycles.
• Bottom Force: 50±10gf.
• Top Housing Material: Thermoplastic, Transparent
• Bottom Housing Material: Thermoplastic, Red
• Stem Material: Thermoplastic, Red
• Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extending the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Kit Contents:

Fully Assembled Keyboard, including:

1. Top and bottom cases
2. HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
3. Case foam
4. BOW/WOB keycaps(base keyboard color)
5. Tool accessories
