About Keychron Q1 HE QMK Wireless Custom Keyboard
The Fully Assembled version includes:
- The keyboard PCB, the case, and the aluminum plate.
- Keycaps (included Mac & Windows keycaps).
- Adjustable-actuation-point Gateron double-rail magnetic switches.
The Q1 HE is compatible exclusively with the Gateron Double-Rail Magnetic Nebula Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.
Keychron Q1 HE

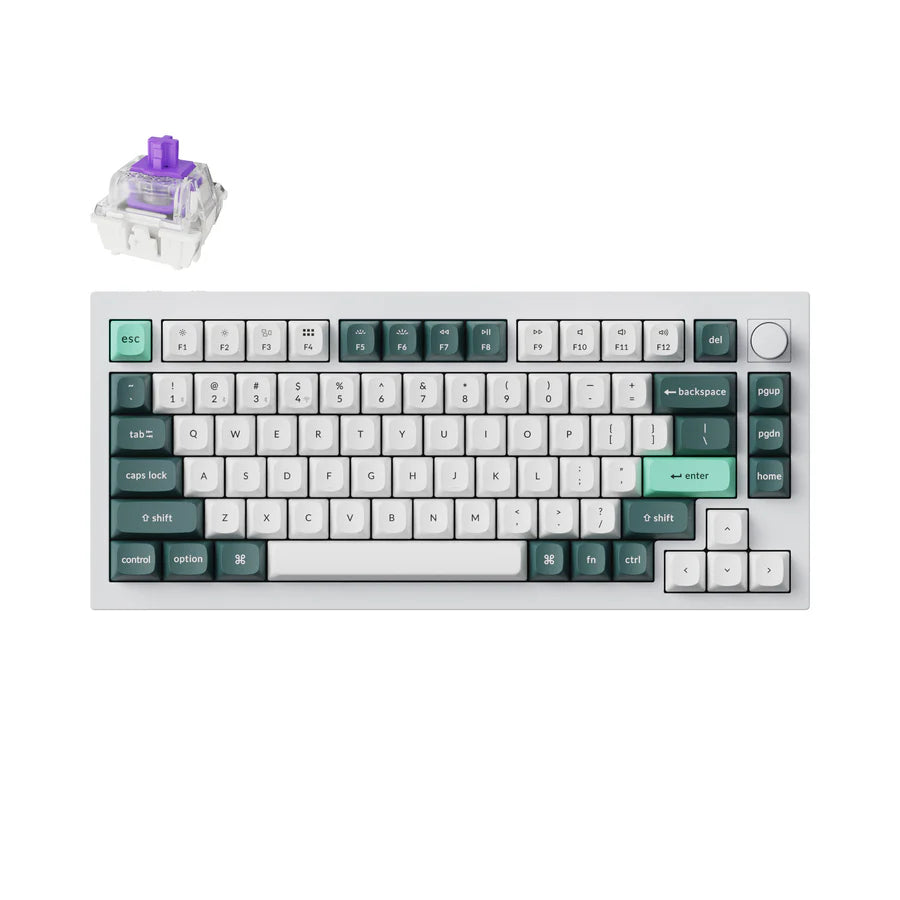

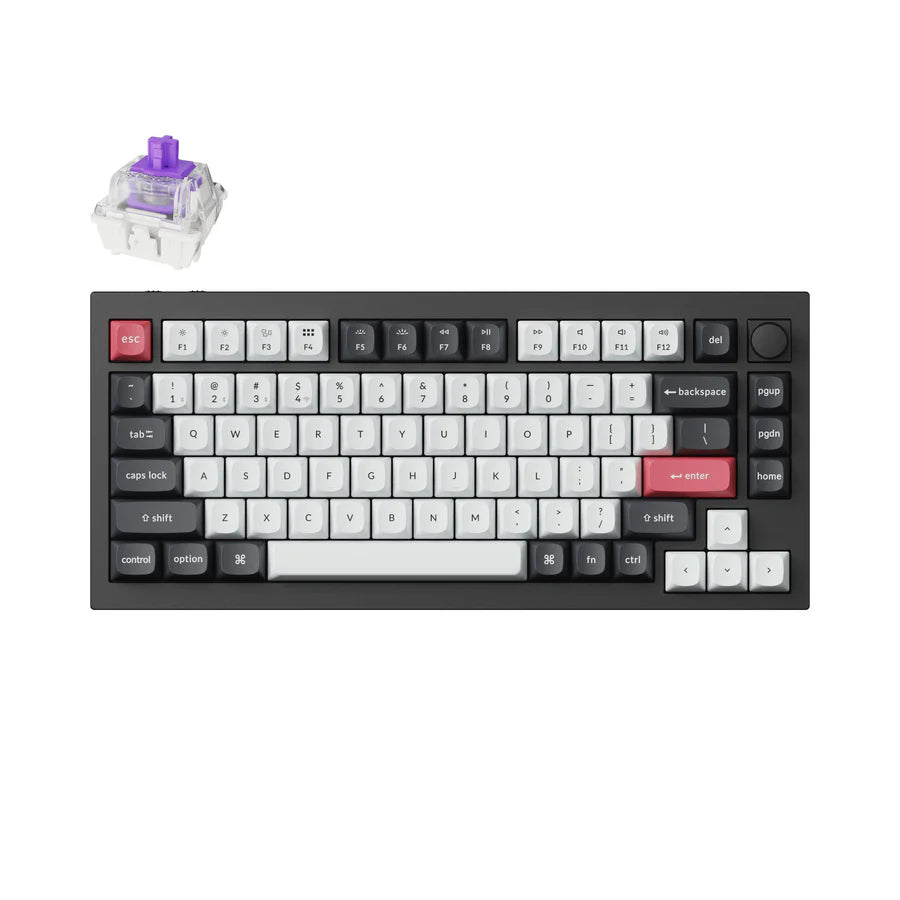

Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.
In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.
Gateron Double-Rail Magnetic Hall Effect Switches
With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.
Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.
Adjustable Actuation Point
Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.
Dynamic Rapid Trigger
Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.
Multiple Actions, One Keystroke
Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.
A Piece Of Metal Art
The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.
What's in the box?
Specs
Width | 145 mm |
---|---|
Length | 327.5 mm |
Front Height | 22.6 mm (without keycaps) |
Back Height | 35.8 mm (without keycaps) |
Feet Height | 2.4 mm |
Angle | 5.2° |
Weight | 1735 g ± 10 g (Fully Assembled version) |
Body Material | Aluminum |
Plate Material | Aluminum |
Polling Rate | 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth) |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Rapid Trigger | Yes |
Adjustable Actuation Points | 0.2 - 3.8 mm |
Dynamic Keystrokes | 4-in-1 action keys |
Sensitivity | 0.1 mm |
Keycap | OSA Double-shot keycaps, not shine-through |
---|---|
MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
Backlight | South-facing RGB LED |
Switch | Gateron double-rail magnetic switch |
Hot-swappable Support | Yes, compatible with Gateron double-rail magnetic switch only. |
Stabilizer | Screw-in PCB stabilizer |
Cable | Type-C cable (1.8 m) + Type-A to Type-C adapter |
Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
Bluetooth Version | 5.1 |
Bluetooth Device Name | Keychron Q1 HE |
Battery | 4000 mAh Rechargeable li-polymer battery |
Operating Environment | -10 to 50℃ |
Wireless Working Time (Backlit off) | Up to 100 hours |
