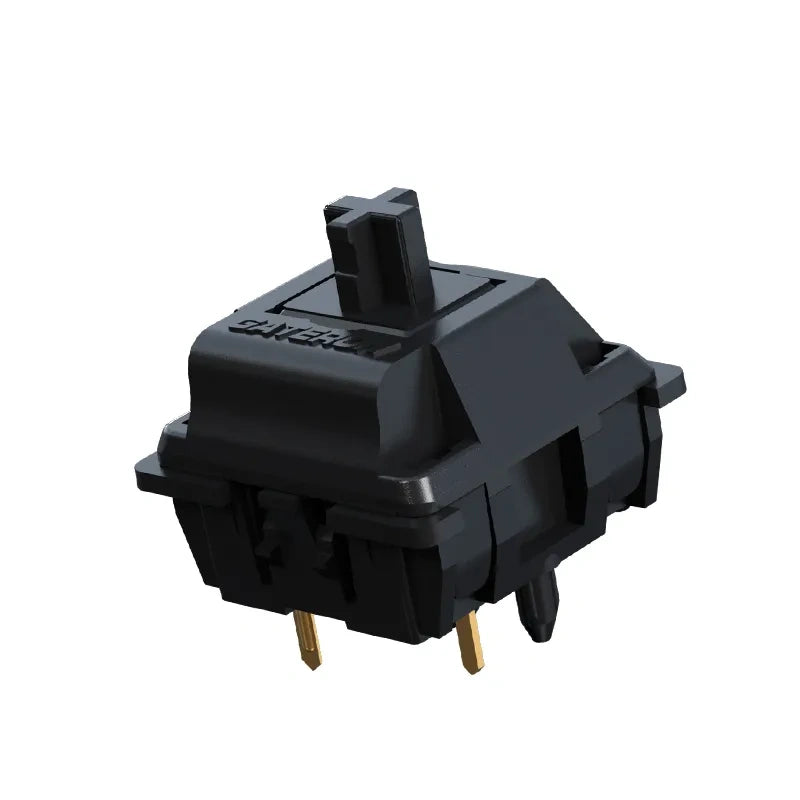

GATERON Oil King Linear Switch
GATERON Oil King Linear Switch
Couldn't load pickup availability
About GATERON Oil King Linear Switch
The Oil King switch is the newest mechanical linear switch that features a Nylon PA66 upper housing, a housing base made of secret black Ink housing material, and a POM stem. The stem in the upper housing is fantastic with ultra-stability and almost no wobbliness. Compared to CJs, it has a deeper patch sound.

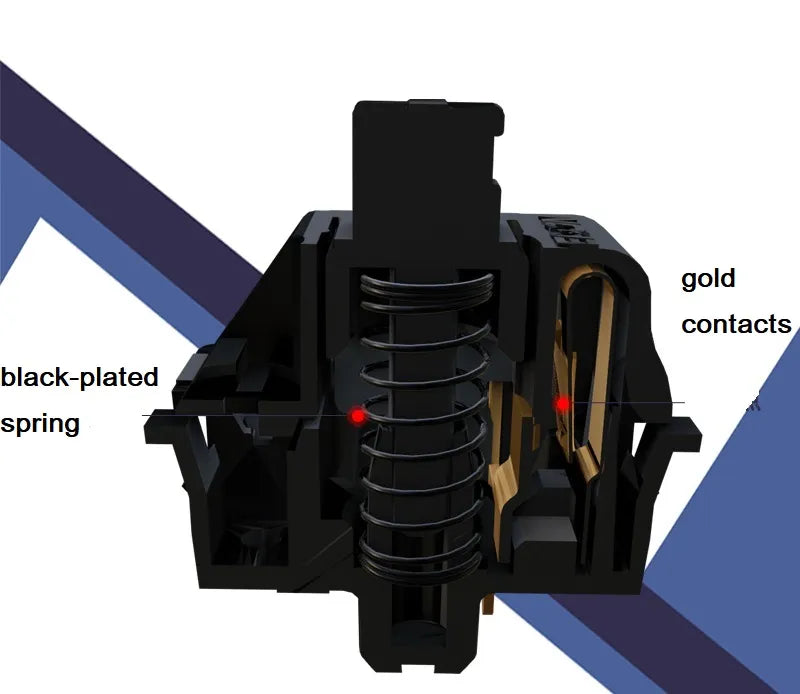

Gold Contact
The gold contact improves anti-oxidation performance and protects the key switch from corrosion, guaranteeing the switch will last for up to 60 million cycles.
Black Plated Spring
The Oil King switch incorporates a long 20mm black plated spring allowing for 55g actuation and 80g bottom-out weight, creating a rather unique and super-smooth typing feeling.
New Upgrade
The pin is upgraded to 3.0 Pin with a 0.3-0.33 mm three-ply chunky design for a more reliable connection and a longer life span. The stronger pin allows for less damage and deformities and makes it easier to hot-swap.
Factory Pre-Lubed
It is pre-lubed in the factory to help avoid spring ping and unnecessary friction and hitches.
Compatible Keyboards
Compatible with 5-Pin MX mechanical (hot-swappable) keyboards with 2-Pin LED/4-Pin LED, or RGB-SMD lights that are not raised.

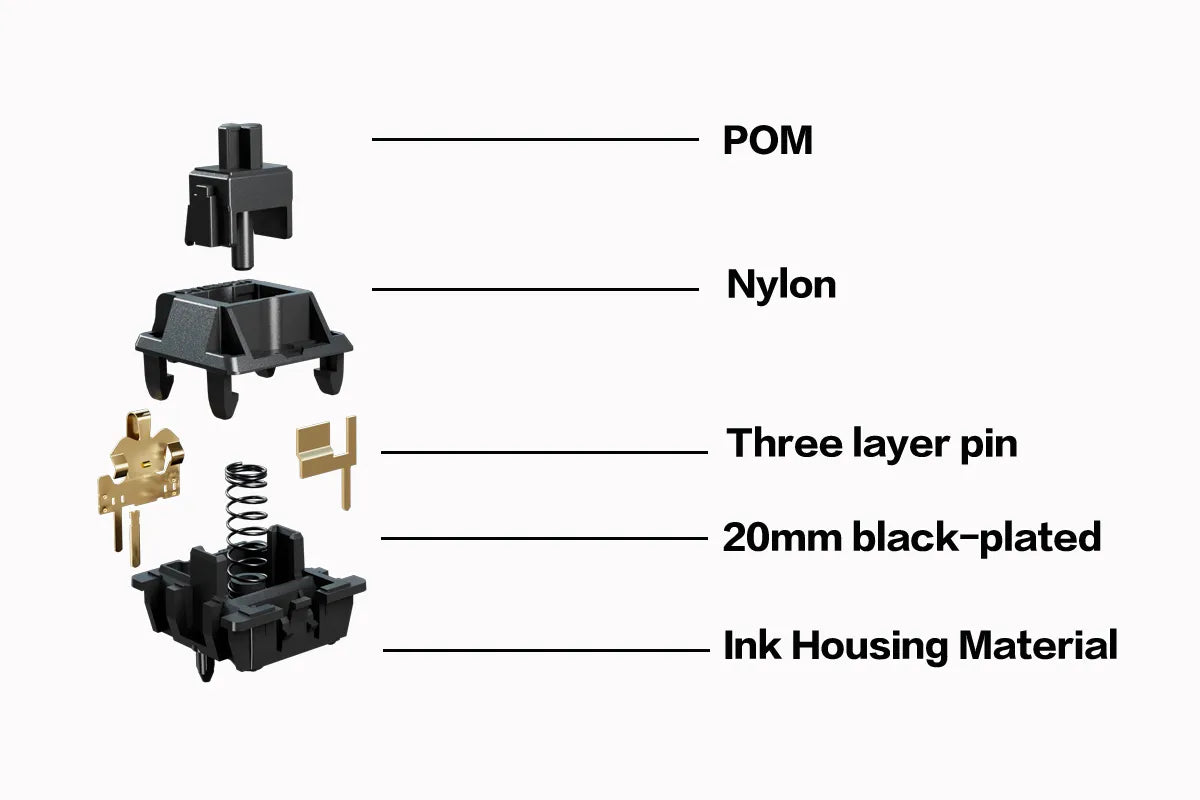

Oil King Linear
• Type: Linear

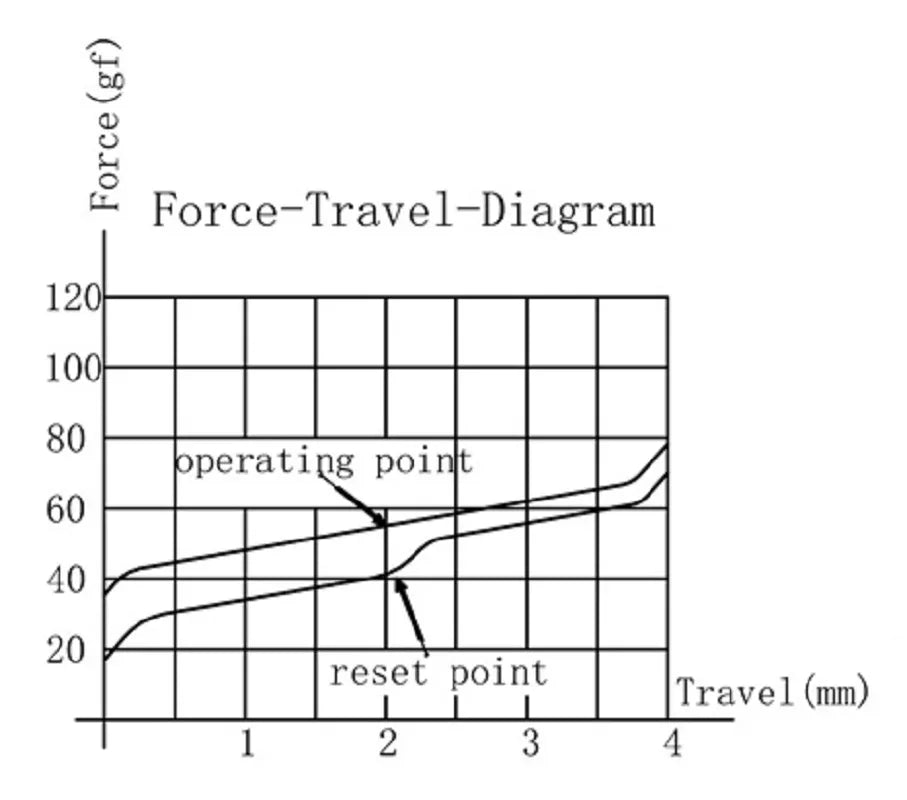

• Operating Force: 55±5g
• Pre-Travel：2.0mm
• Total Travel：4.0mm
• Stem: POM
• Top Housing: Nylon
• Bottom Housing: Ink Housing Material
• Spring: 20mm black-plated
• LED Support: Plug-In
• Pre-lubed: Yes
• Pins: 5-Pin
Notice: Due to the housing design of the Gateron Oil King switches, the backlight effect will not be that visible.
