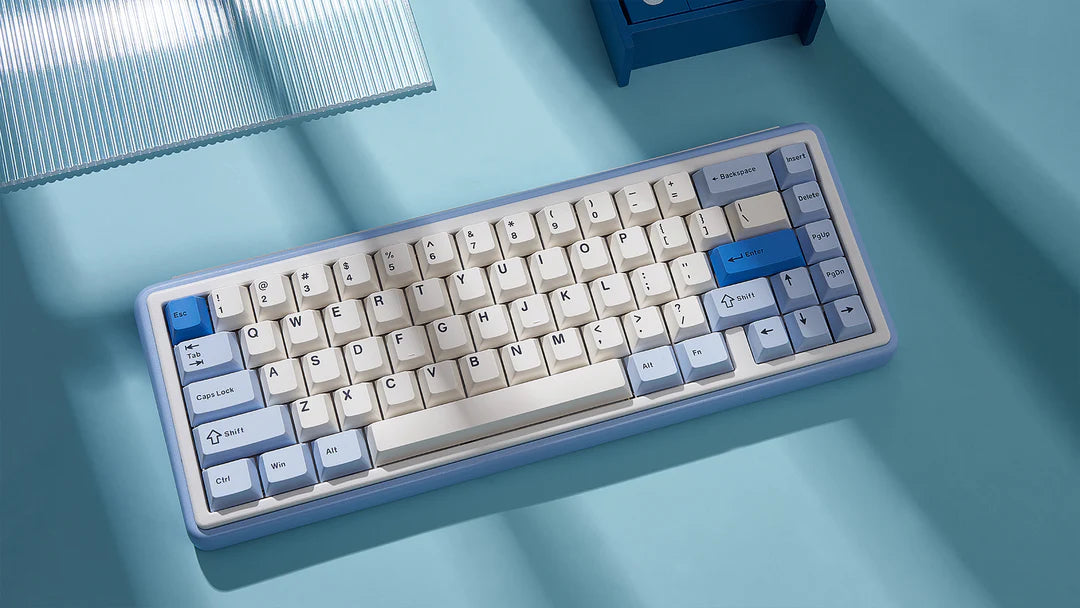

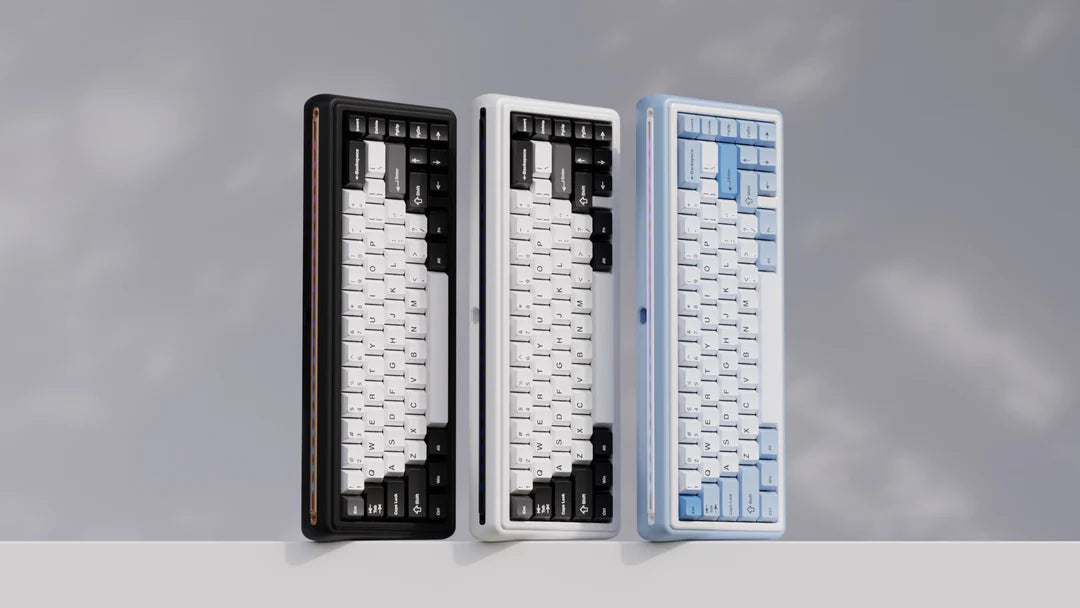

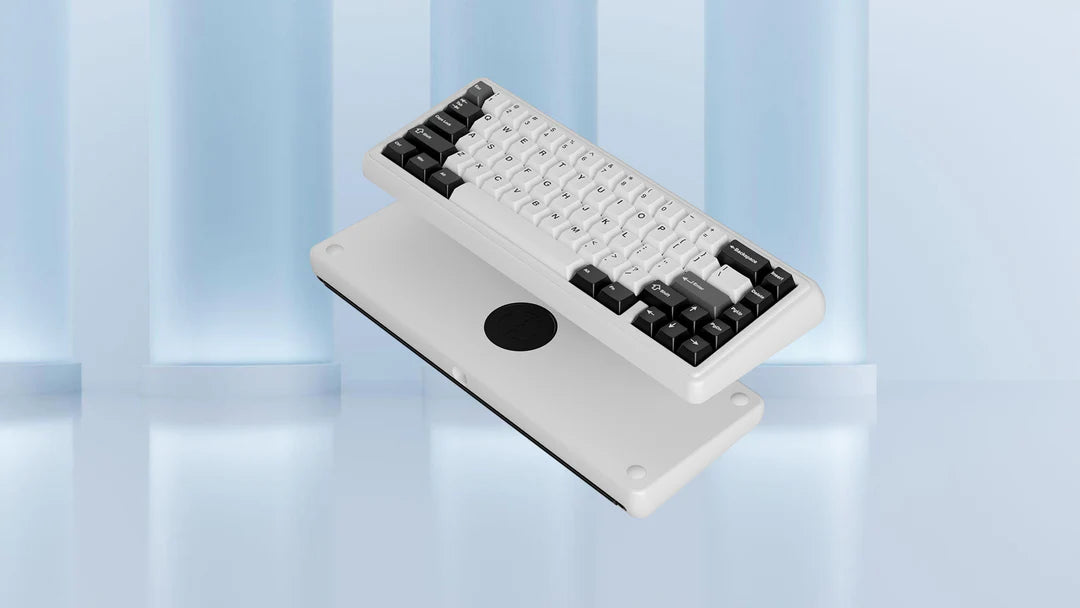

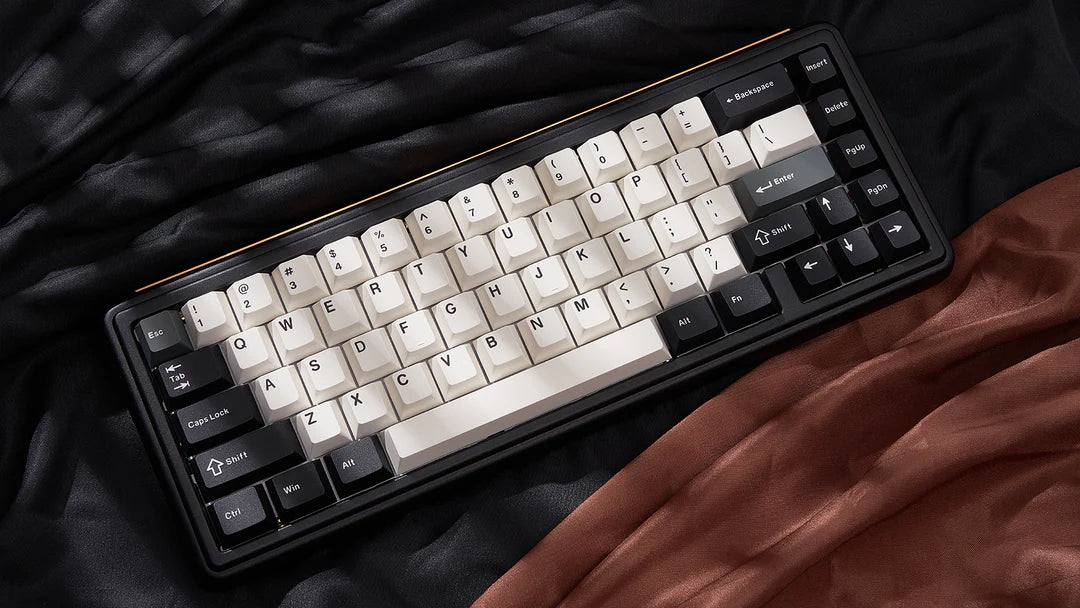

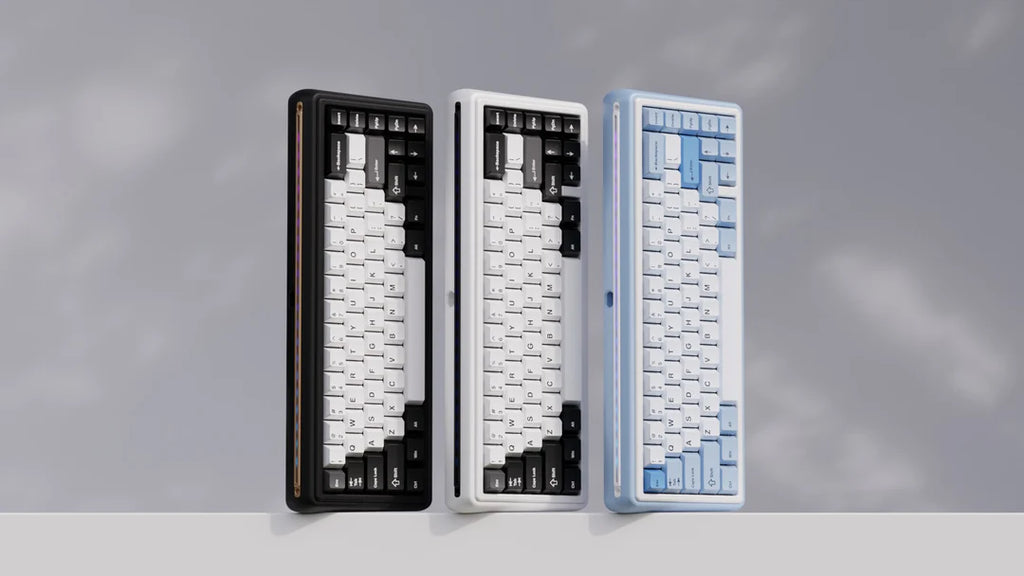

About Chillkey ND65 CS HE
Product Information
- Keyboard Layout:65%
- Finish Treatment:Electrostatic Coating
- Typing Angle:6.5 Degree
- Front Height:18.45mm
- Case Material:Aluminium
- PCB:Wired ,Non Flex-cut

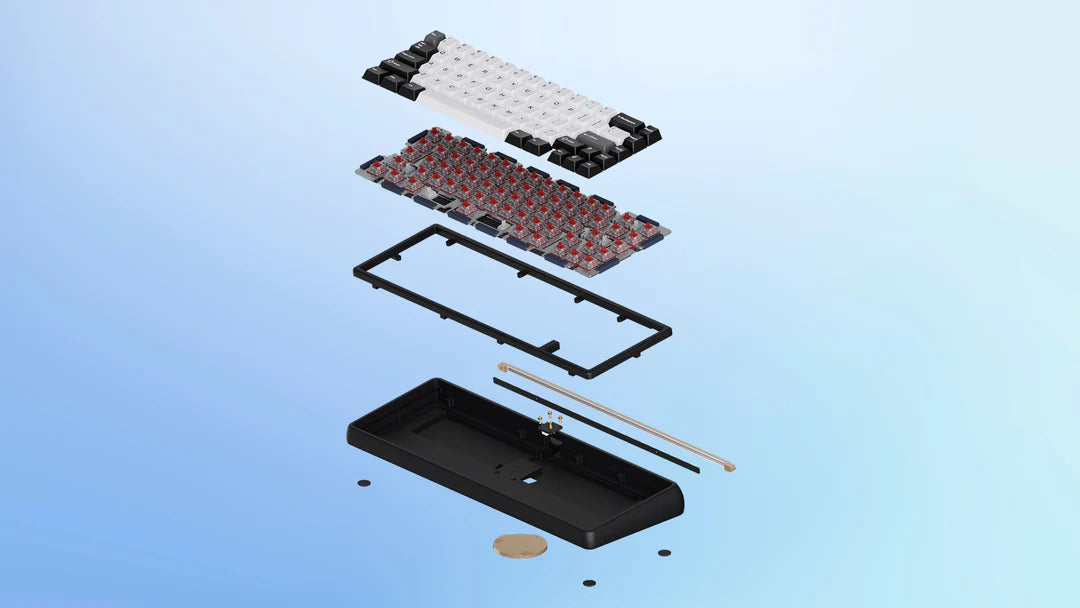

- Mounting Style:Gasket Mount
- Switch Type:South Facing LED Switch
- Stabilizer Type:Plate Mount
- PCB Thickness:1.6mm
- Battery Capacity:N/A
- Default Plate: Aluminium
- Supported Hot-swappable:Yes
- Supported Layouts:ANSI
- VIA/QMK Support :N/A
- Dimensions:335.6*125.8*34.3mm
- Wired Polling Rate:1K

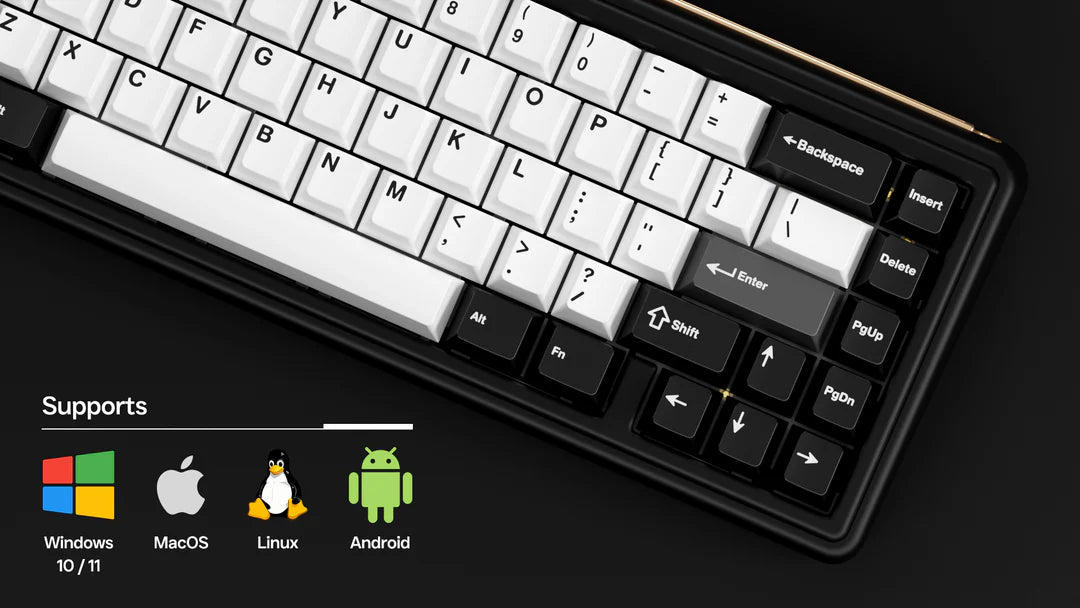

- OS Compatibility:WINDOWS 10,WINDOWS 11,Linux,macOS
- Keycap Material:PBT
- Keycap Technology:Doubleshot

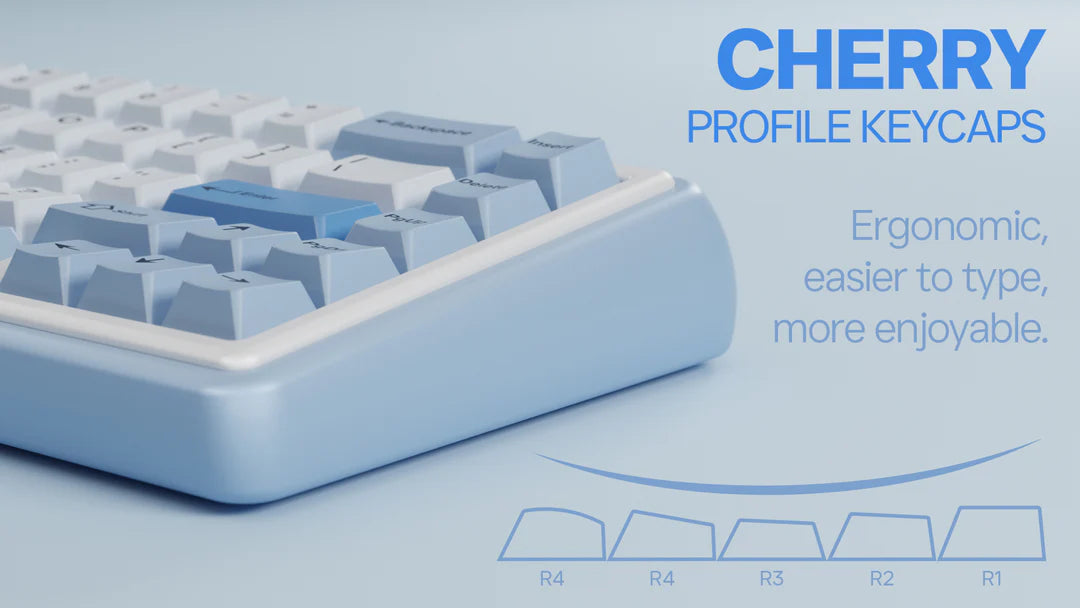

- Keycap Profile:Cherry
- Keys QTY:67keys
Switch Specifications
- Manufacturer:Gateron
- Switch Type:Magnetic Switches
- Top Housing Material:PC
- Bottom Housing Material:PC
- Stem Material:PC
- Total Travel:4.0±0.2mm
- Pre-Travel:Trigger stroke can be freely defined
- Actuation Force:Trigger stroke can be freely defined
- Preload:30±10gf
- Bottom-out Force:50±10gf
- Tactile Force:N/A
- Tactile Travel:N/A
- Lifespan:150 million keystrokes
- Spring:Stainless steel
- Lubing:Factory lubed
- Return rate:1KHz
